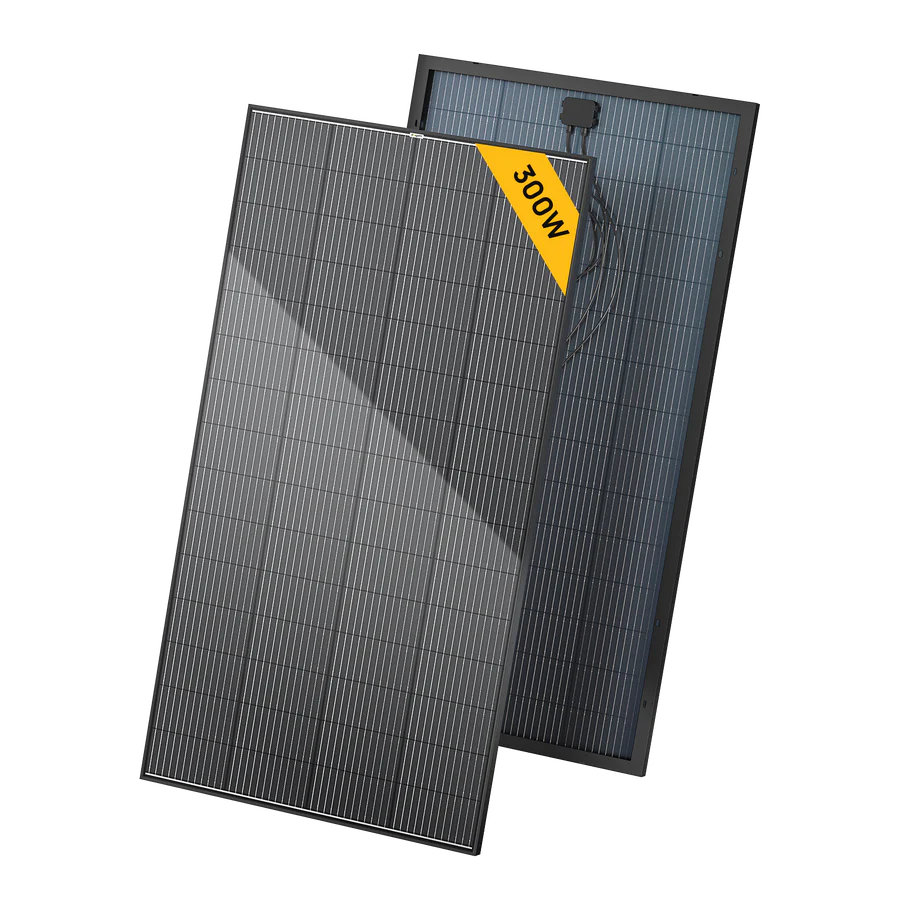

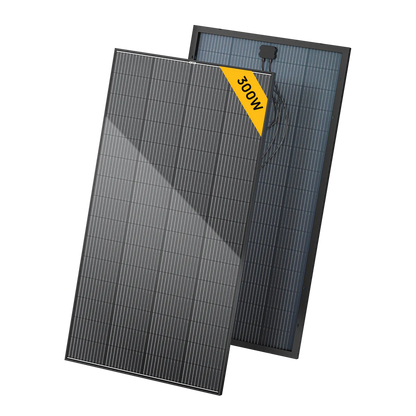

BougeRV 300W 12V 12BB Mono Solar Panel ISE239
BougeRV 300W 12V 12BB Mono Solar Panel ISE239
Couldn't load pickup availability
BougeRV 300W 12BB solar panel is an exceptional choice for those looking for a high-performance solar panel. The 10BB cell design utilizes ten busbars to collect and transmit the electrical current generated by the solar cells, resulting in a significant boost in overall performance. This efficient solar panel is user-friendly, easy to install, and provides maximum output. The monocrystalline panels, 12BB cell design, and all-black design make this 300W 12v solar panel an exceptional choice for you.
Compared to three 100 watts solar panels, BougeRV 300 watts solar panels could save 11% space and reduce the loss of connection. Allows you to install more solar panels on the roof of the RV to expand a larger system to meet your daily needs.

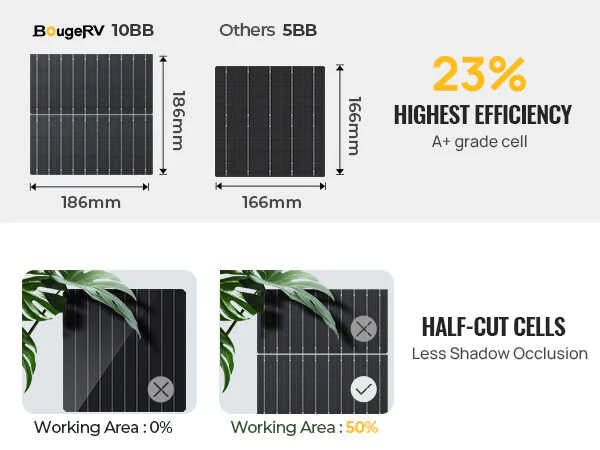

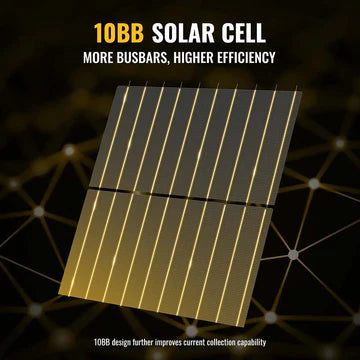

BougeRV 300W solar panel uses the high-level 12BB cell design which has a 23% highest conversation rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V battery or charge a 24/48V battery by wiring several solar panels in series.

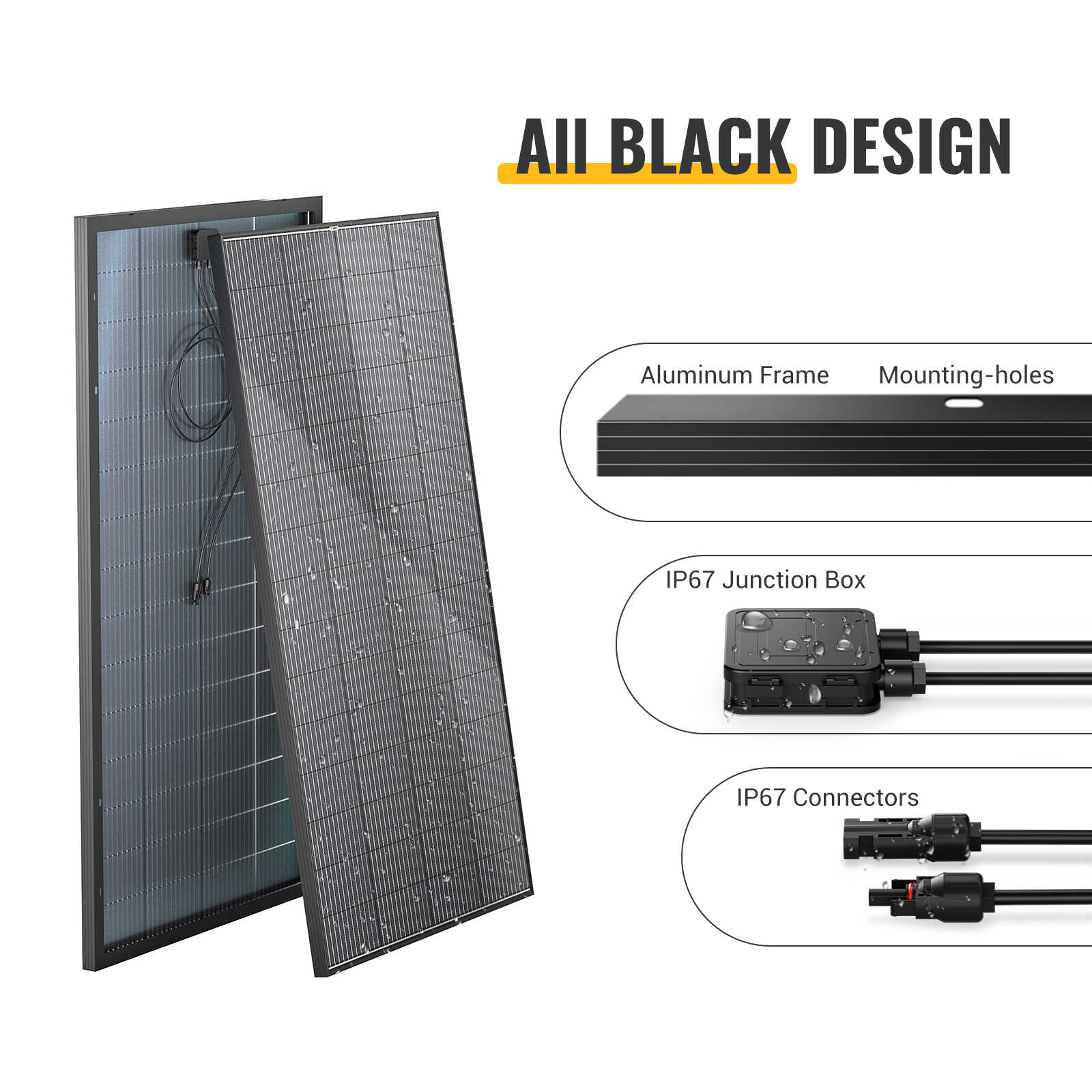

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Solar Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.
| Maximum Power (W) | 300±5% W |
| Open Circuit Voltage Voc (V) | 40.7±5% V |
| Max Power Voltage Vmp (V) | 34.8±5% V |
| Max Power Current Imp (A) | 8.62±5% A |
| Short Circuit Current Isc (A) | 9.64±5% A |
| Solar Cells Efficiency | 23% |
| Warranty Description |
10 years product warranty and 25-years power warranty |
| Product Dimension (IN) | 64.57x34.65x1.38 inches |
| Net Weight (kg / lb) | 35.31 lb |
| Application Class | Class A |
| Max Static Load (front) | 2400 Pa |
| Max Static Load (back) | 2400pa |
| Series Fuse Rating | 15A |
