BigBattery 48V 3X BADGER KIT – NMC – 144Ah – 6.3kWh KIT0896

Name: BigBattery 48V 3X BADGER KIT – NMC – 144Ah – 6.3kWh KIT0896
Brand: BigBattery
SKU: KIT0896
Price: 2550.00 USD
Availability: InStock

$2,550.00

Sale Sold out

Shipping calculated at checkout.

Quantity

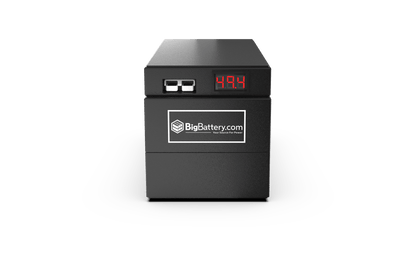

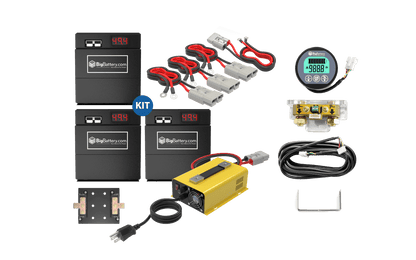

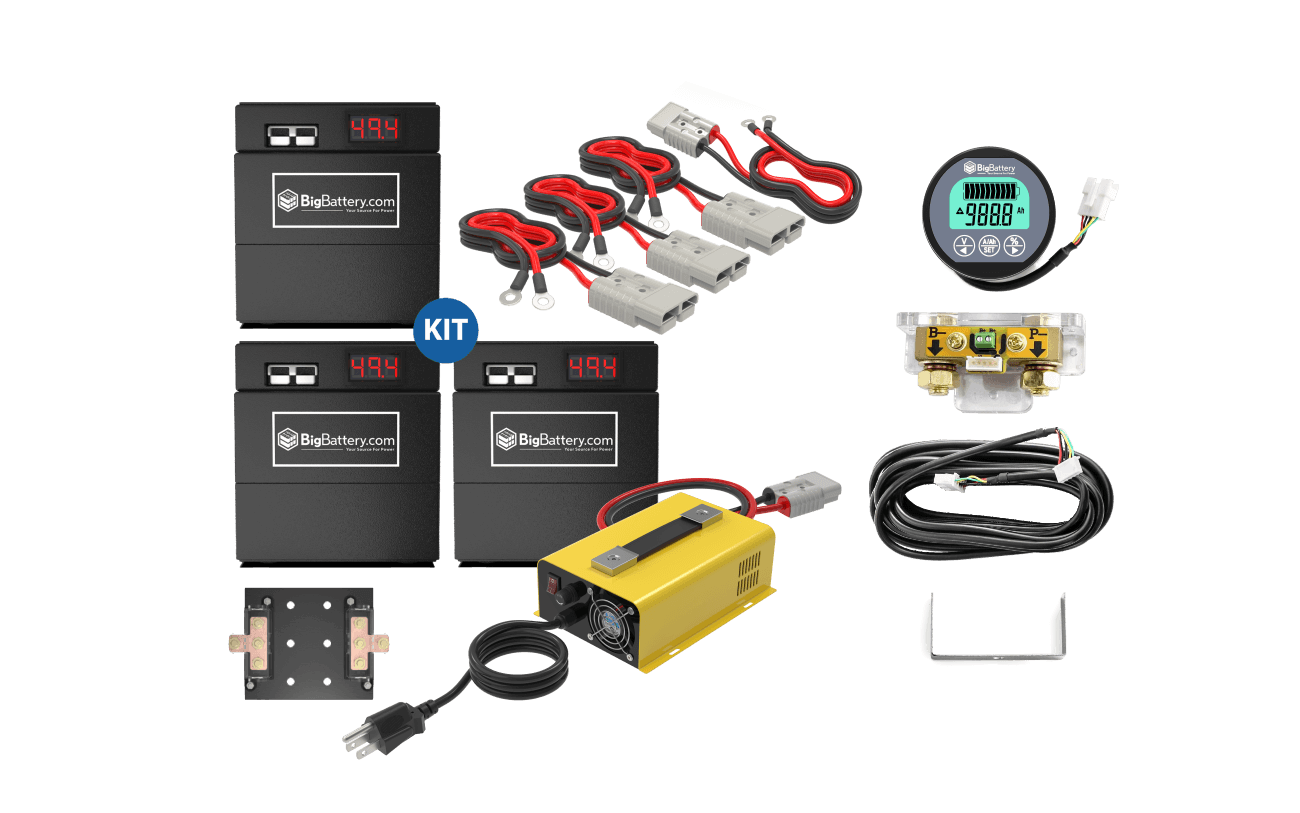

3 × 48V BADGER 2 - NMC - 48Ah - 2.1kWh

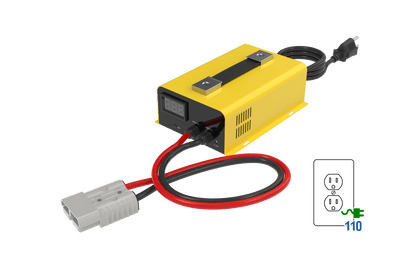

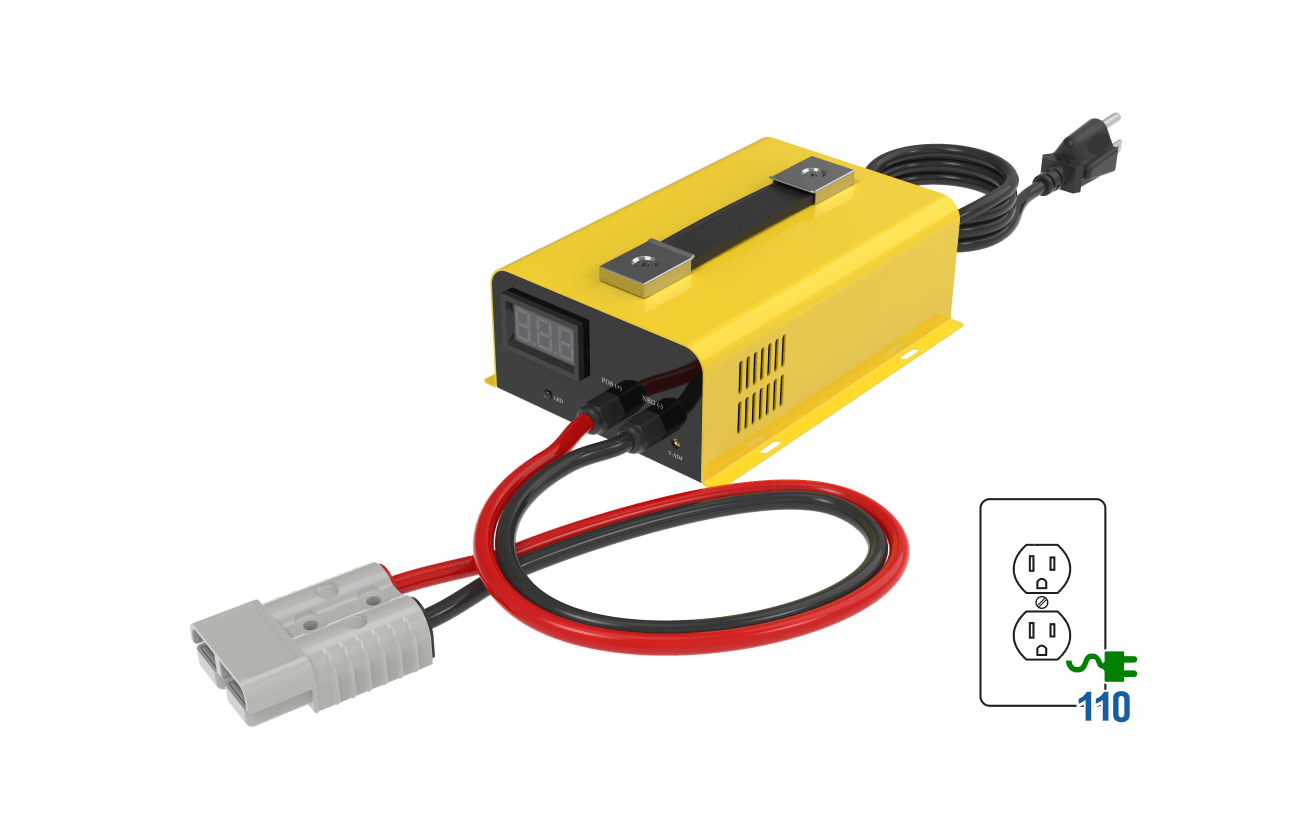

1 × 48V 110V AC 17A Lithium Charger (50.4V DC)

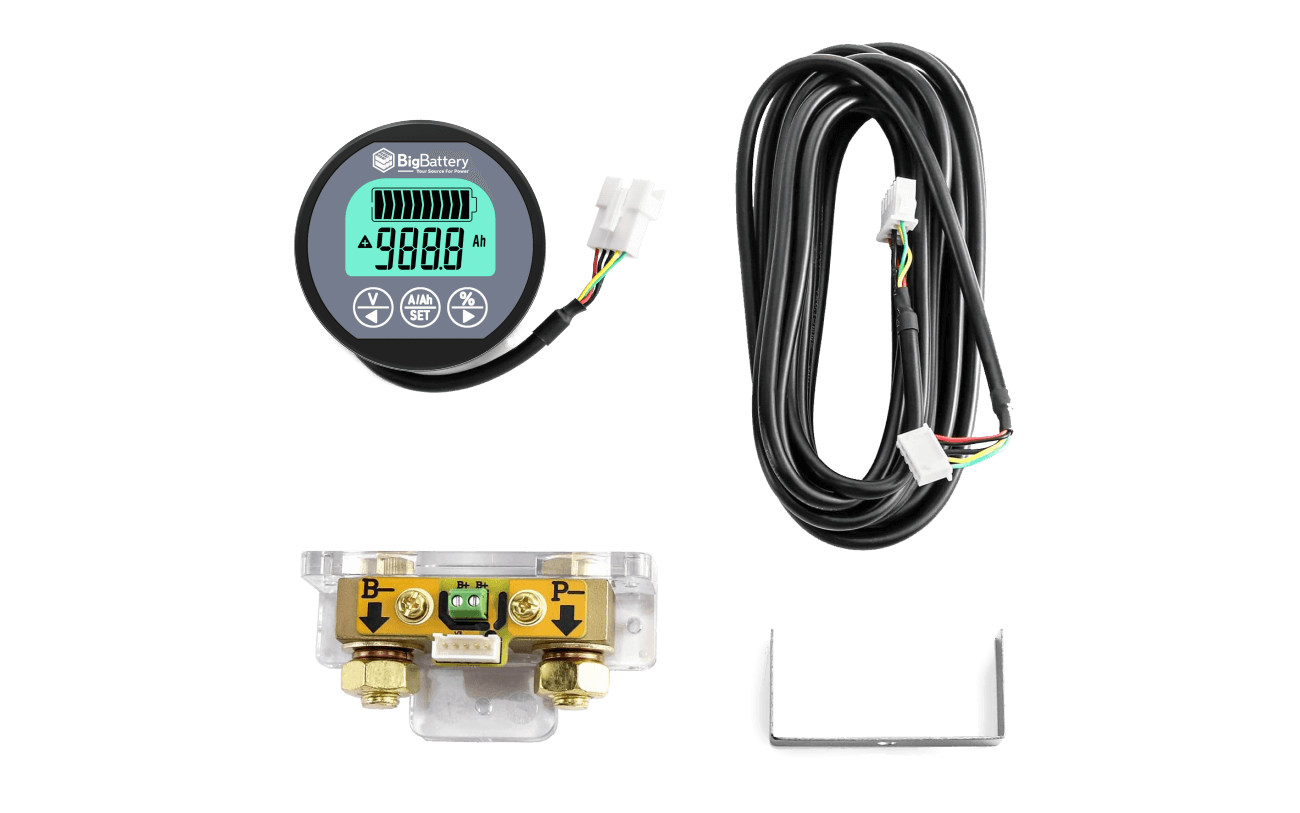

1 × 350A Battery Capacity Meter

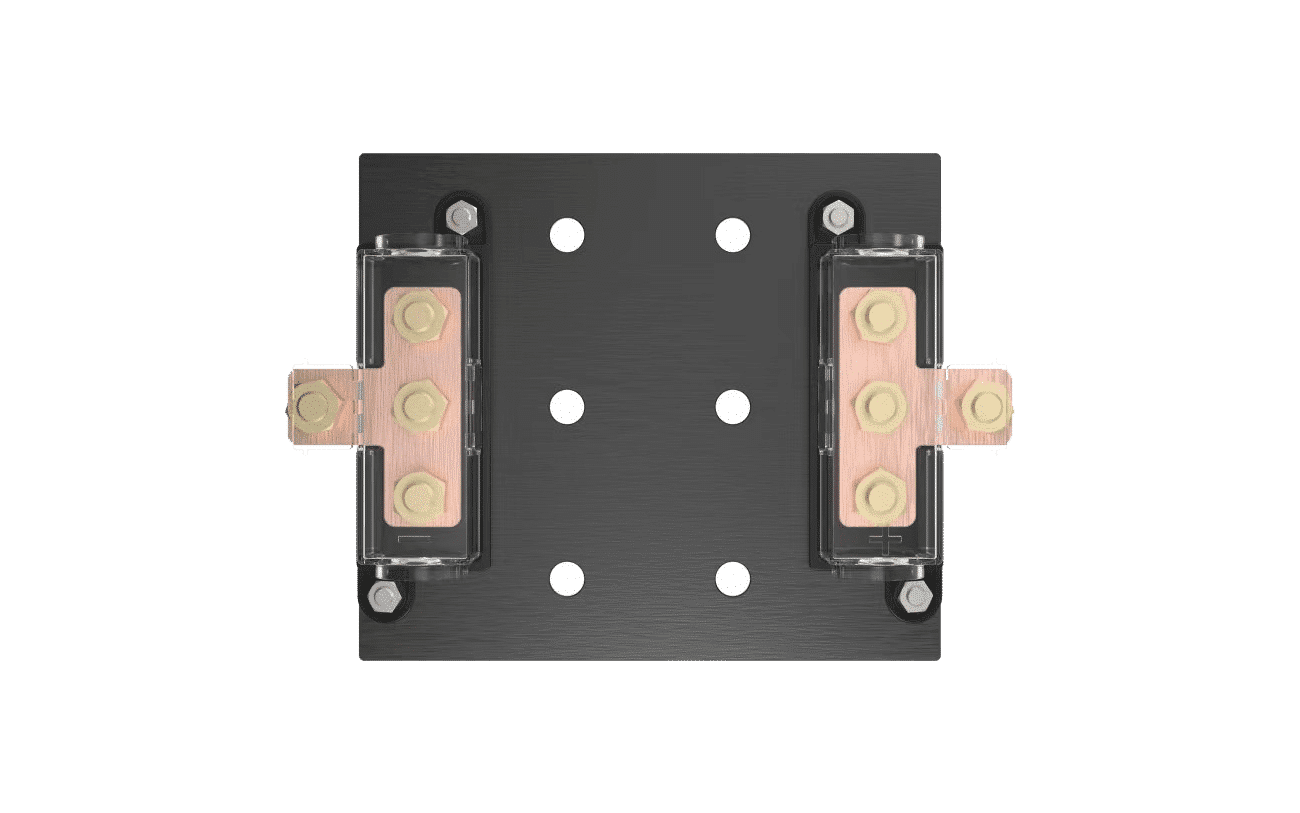

1 × Parallel Busbar

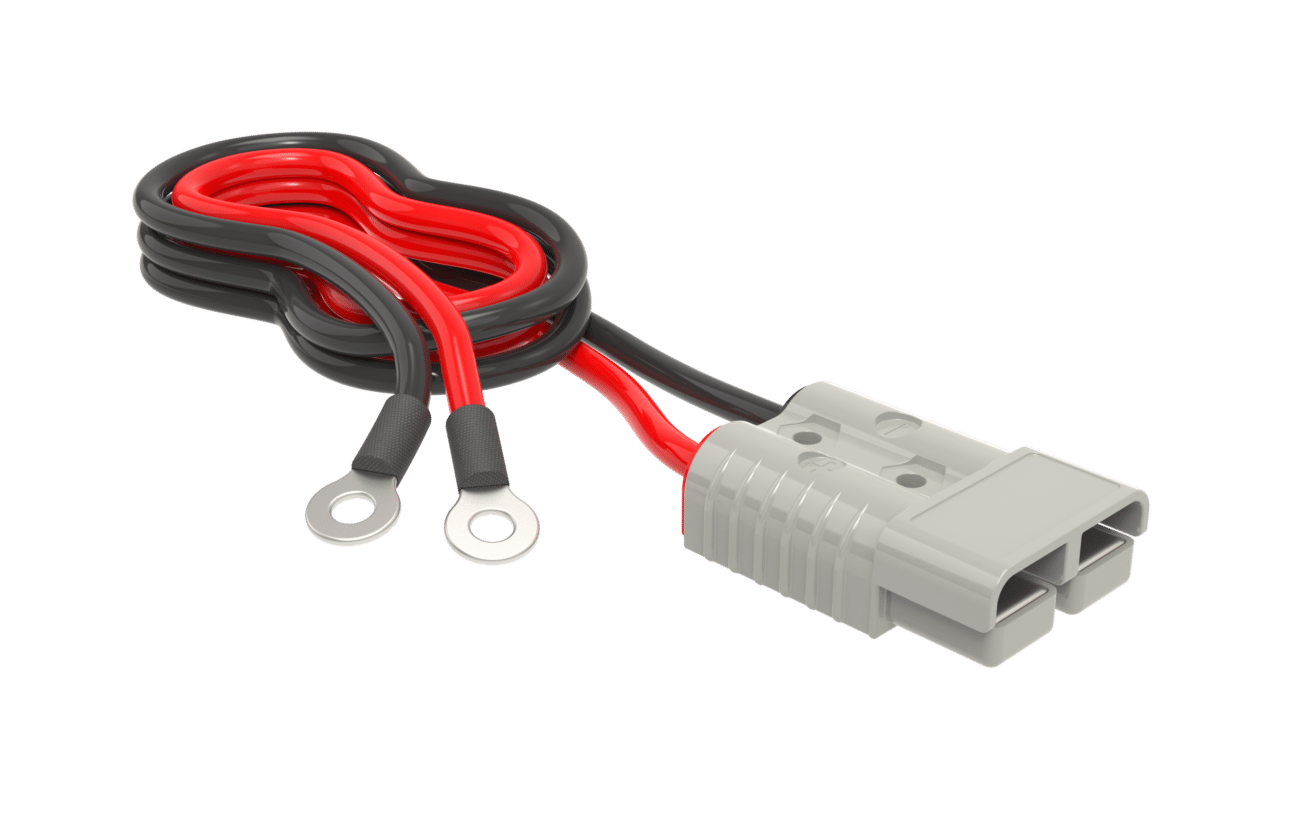

1 × 6AWG 4FT BB175 to Ring Terminal Cable

3 × 6AWG 3FT BB50 to Ring Terminal Cable

COMPACT CART KITS! BigBattery’s 48V 6.3 kWh NMC 3x BADGER (BDGR) Kit is our most compact all-in-one golf cart solution ever! But don’t be mistaken, the BDGR Kit delivers on reliability, efficiency, and capacity when it comes to powering your cart.

Each unit is equipped with brand new lithium-ion cells, a 63A Safety Breaker, and our advanced BMS which includes a Thermal Management System and extensive protections, so you can be confident the BDGR Kit can safely and efficiently replace – and outperform – any 48V lead-acid alternative.

Plus, at $468/kWh and a mere 21 lbs/kWh per unit, the 3x BDGR Kit is one of the lightest and most cost-effective 48V lithium golf cart solutions available today, capable of a 2C Discharge Rate and high discharge currents, so you know you’ll be getting the most from your battery system. Upgrade your cart today with the BDGR Kit!

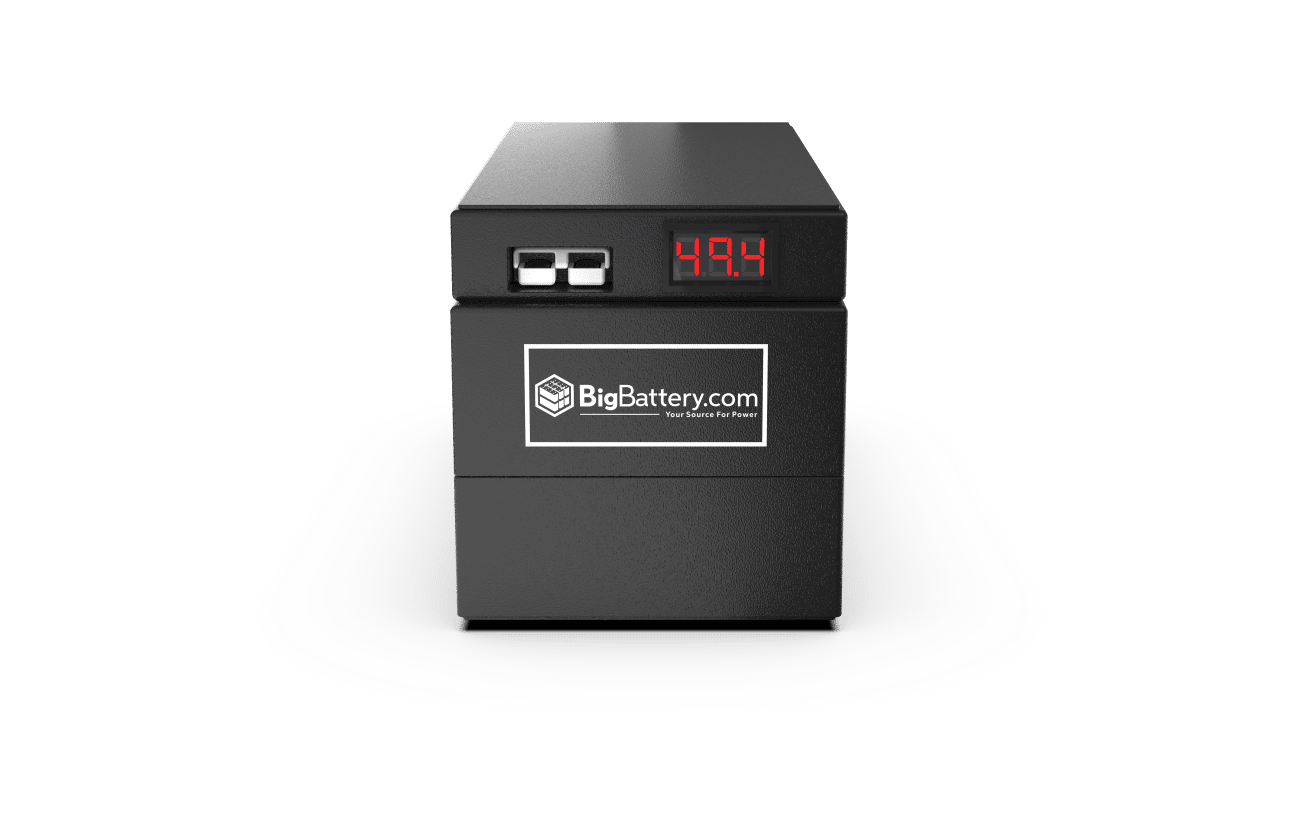

Single Battery Tech Specs

SKU:	ABDGR-48021-G2
System Voltage:	48V
Nominal Voltage:	43.2V
Chemistry:	NMC
Charging Voltage:	50.4V
Max Charge Voltage:	50.4V
Operating Voltage Range:	36 - 50.4V
kWh Capacity:	2.1kWh
Ah Capacity:	48Ah
Cell Configuration:	12S
Max Continuous Discharge Current:	63A
Max Continuous Power:	2800W
Max Discharge Peak Current:	126A (6 Seconds)
Max Charge Current:	60A
Charge Temperature Range:	-20°C (-4°F) / 55°C (131°F)
Discharge Temperature Range:	-35°C (-31°F) / 65°C (149°F)
Optimal Discharge Temperature Range:	15°C (59°F) / 35°C (95°F)
Storage Temperature Range:	-5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight:	36 lb (16.3 kg)
Depth:	16.2 in (41.2 cm)
Width:	6.7 in (17 cm)

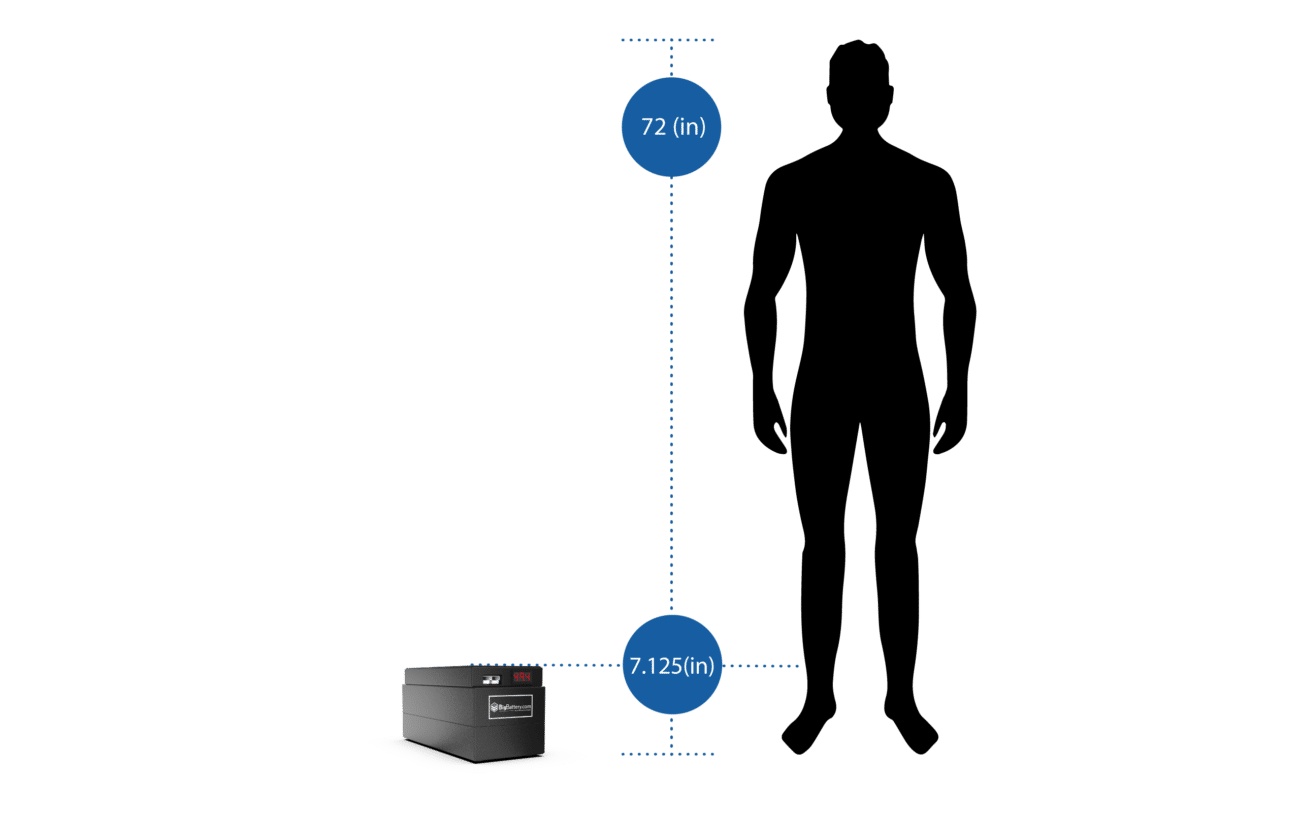

Height:	7.1 in (18 cm)
Safety Features:	Breaker (63A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
Max Connections:	Up To (8) Parallel
