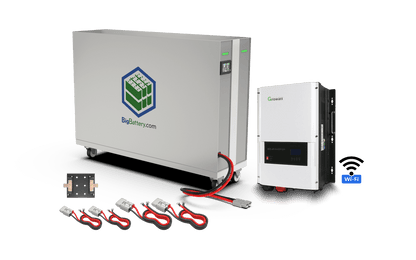

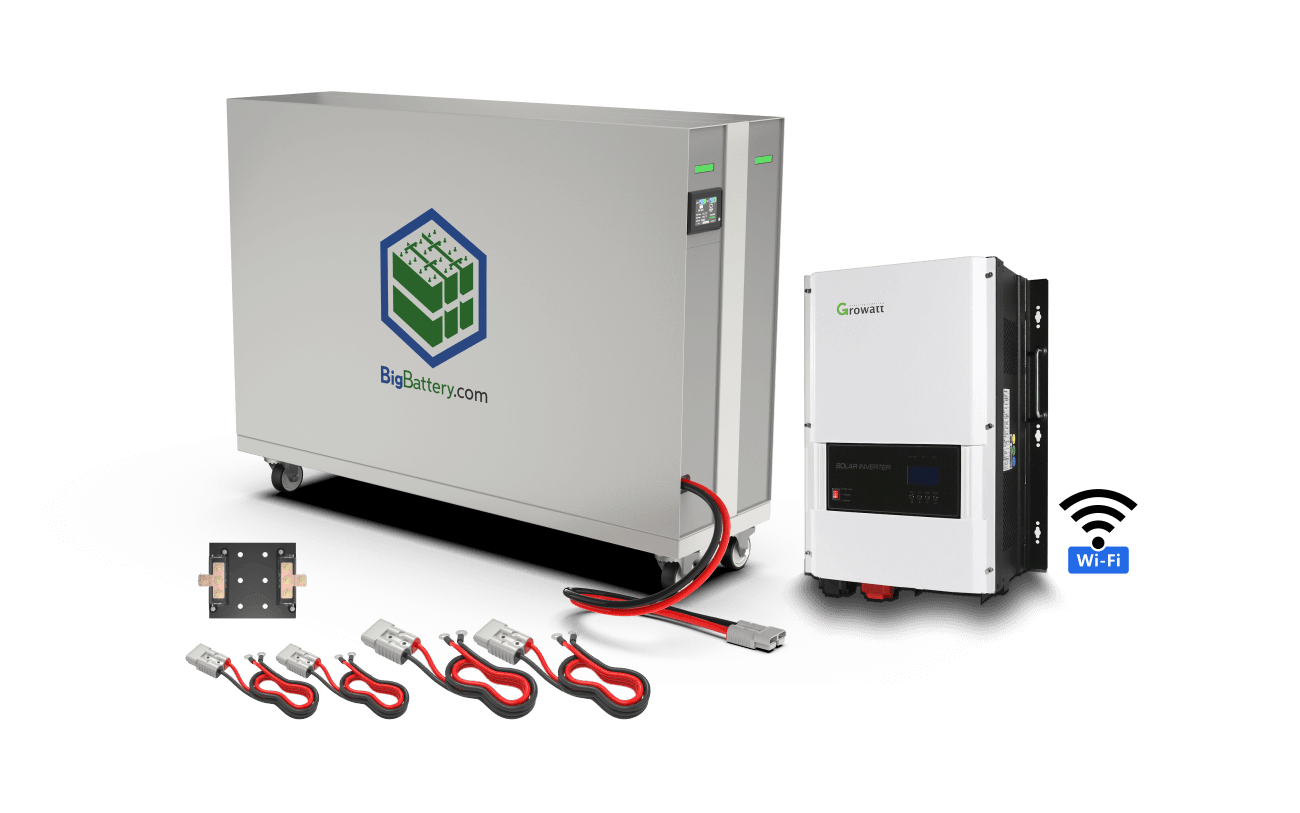

BigBattery 48V 2X RHINO INVERTER KIT – LiFePO4 – 552Ah – 28kWh KIT0672

BigBattery 48V 2X RHINO INVERTER KIT – LiFePO4 – 552Ah – 28kWh KIT0672

Regular price $14,000.00
Regular price Sale price $14,000.00
Sale Sold out
Shipping calculated at checkout.
2 × 48V RHINO - LiFePO4 - 276Ah - 14kWh

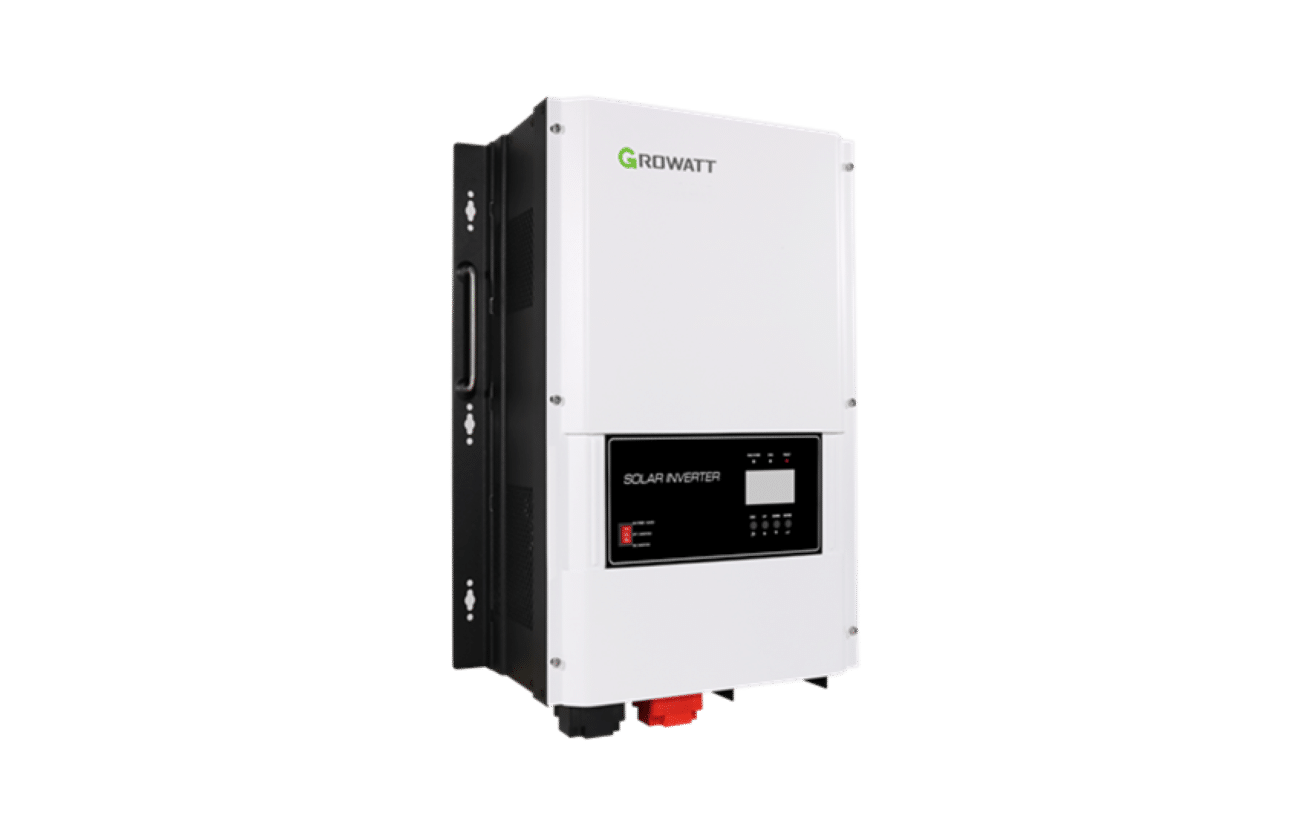

1 × Growatt 12K Inverter
1 × Mobile Cart for two 48V Rhinos

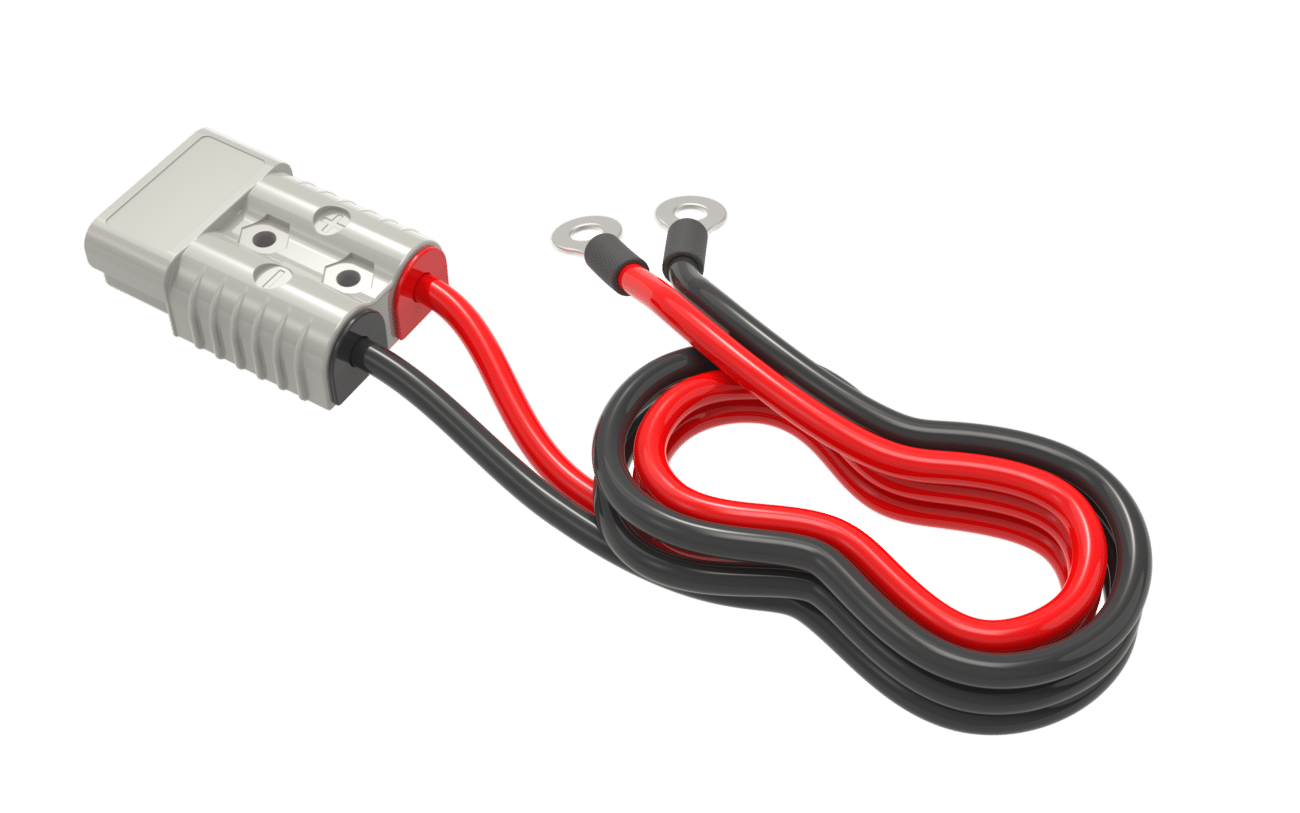

2 × 4AWG 4FT BB350 to Ring Terminal Cable
1 × Parallel Busbar

The 48V Off-Grid Home RHINO System Power+ was designed to completely power all your electronics and heavy duty home appliances in a 5-7 bedroom home. This system can be used as a large-scale emergency power backup or a fully off-grid wind/solar home power system for larger homes. This is a powerhouse of a system, utilizing the newest inverter and battery technology at the best price in the USA!



The 2 48V/28KWh RHINO Batteries come with a built-in color LCD Smart Display and new LFP cells guaranteed to last you 10-15 Years (depending on your usage), and you can upgrade for up to 112 Kwh of capacity. These batteries are calibrated to the 12,000-Wh Growatt Inverter pumping enough AC power to keep everything in your home running smoothly. This complete system comes with all components and parts required for any local low-voltage electrician to install on your house in less than a day!



The 48V Off-Grid Home RHINO System Power+ is compatible to work with all AC, wind, solar, generator power and/or any redundancy combination you require. This system connects to shore power so your battery will automatically charge when connected. The included low-frequency inverter eliminates power spikes within your home, allowing all your electronics in your home to last longer. This kit includes the safest LFP battery technology with our Built-In Triple-Safety Redundancy features. This system requires ZERO Maintenance and lasts 300% longer than lead-acid off-grid systems, and all battery packs come with a 10 Year Warranty!



Single Battery Tech Specs

SKU: ARHNR-48140-G1
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
Charging Voltage Range: 55.6 - 58.0V
Max Charge Voltage: 58.8V
Operating Voltage Range: 43 – 58.8V
kWh Capacity: 14kWh
Ah Capacity: 276Ah
Cell Configuration: 16S
Max Continuous Discharge Current: 175A
Max Continuous Power: 7500W
Max Discharge Peak Current: 350A (6 Seconds)
Max Charge Current: 90A
Charge Temperature Range: -20°C (-4°F) / 65°C (149°F)
Discharge Temperature Range: -35°C (-31°F) / 65°C (149°F)
Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight: 290 lb (131.5 kg)
Depth: 4.4 in (11.2 cm)
Width: 43.3 in (110 cm)
Height: 26.7 in (67.8 cm)
Safety Features: Fuse (300A) & Battery Management System
(Over/Under Voltage, Over Current, &
Over/Under Temperature Protections)
Max Connections: Up To (8) Parallel



Designed For 48V Applications
