BigBattery 48V 2X PUMA 6K INVERTER KIT KIT0937
BigBattery 48V 2X PUMA 6K INVERTER KIT KIT0937
Couldn't load pickup availability

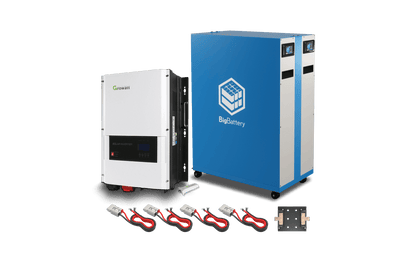

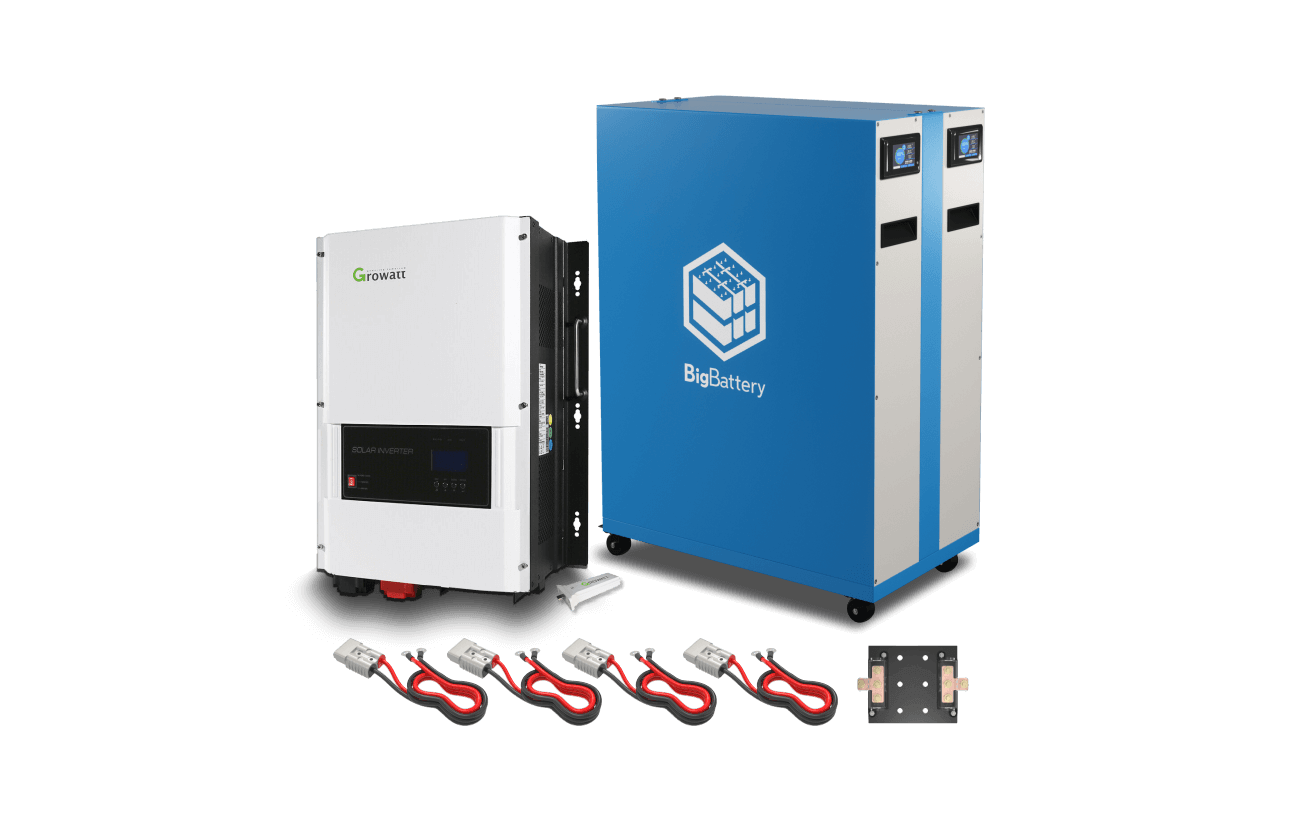

THE POWER OF THE PUMA! BigBattery’s all-new 48V 12kWh 2x PUMA 6K Kit is a game-changer when it comes to compact power storage for your home or business.

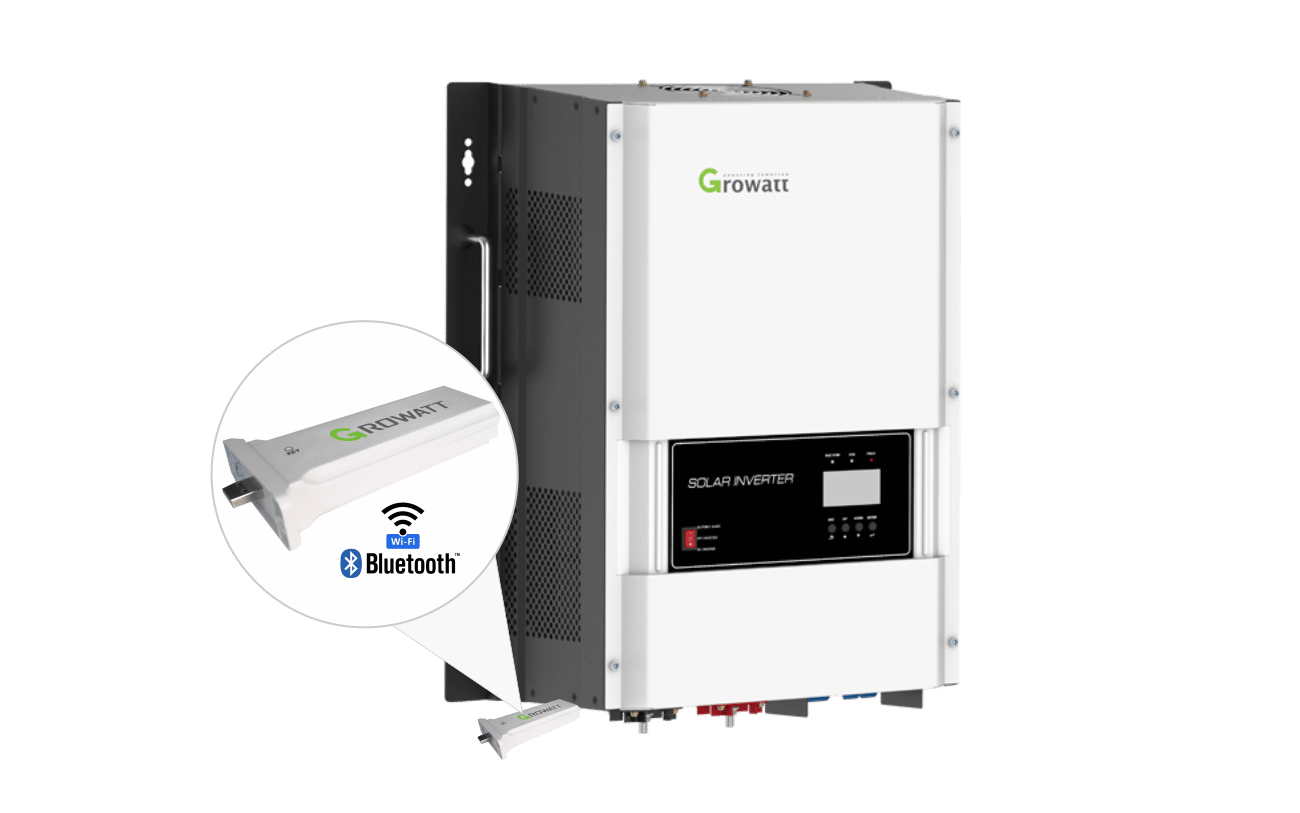

The PUMA is our most compact 48V off-grid solution to date, packing 6kWh (133Ah) of capacity in a single unit. Built to be an energy-dense and reliably efficient way to power your appliances, the PUMA requires zero routine maintenance, and boasts a lifespan of up to 10+ years, backed by our 10 year warranty. The 2x PUMA Kit was designed to be easily installed in your home or office building, and includes a mounting cart equipped with sturdy caster wheels for easy transportation, as well as a 6kW Growatt inverter for connecting your batteries to the rest of your power system.
Each PUMA comes equipped with our advanced BMS, as well as an integrated LED Smart Display built into the side of each unit so you can always monitor the health and status of your batteries, including metrics such as voltage, amperage, temperature, cycle count, cell voltages, and more. Plus, with the ability to connect up to 8 units together in parallel, you can set yourself up with a massive power system.
Pick up the all-new 48V 2x PUMA 6K Kit today, and ensure your home or business is always powered and prepared!
Single Battery Tech Specs
| SKU: | APUMR-48066-G1 |
| System Voltage: | 48V |
| Nominal Voltage: | 50.4V |
| Chemistry: | NMC |
| kWh Capacity: | 6kWh |
| Ah Capacity: | 133Ah |
| Charging Voltage Range: | 58.8V |
| Max Charge Voltage: | 58.8V |
| Operating Voltage Range: | 44.8 - 58.8V |
| Suggested Low Voltage Cutoff: | 44.8 - 51.6V |
| BMS Cutoff Range: | N/A |
| Cell Configuration: | 14S 2P |
| Max Continuous Discharge Current: | 175A |
| Max Continuous Power: | 10000W |
| Max Discharge Peak Current: | 350A (6 Seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 136 lbs (62 kg) |
| Depth: | 5 in (127 mm) |
| Width: | 19.875 in (504.8 mm) |
| Height: | 26.8 in (680.7 mm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
Designed For 48V Applications
- LEAD ACID REPLACEMENT
- RESIDENTIAL BACKUP
- EMERGENCY POWER
- OFF-GRID SYSTEMS
- COMMERCIAL SYSTEMS
- WORKSITE BACKUP
- MOBILE BACKUP
- COMPACT STORAGE
- DATA CENTERS
- TELECOM UPS
