BigBattery

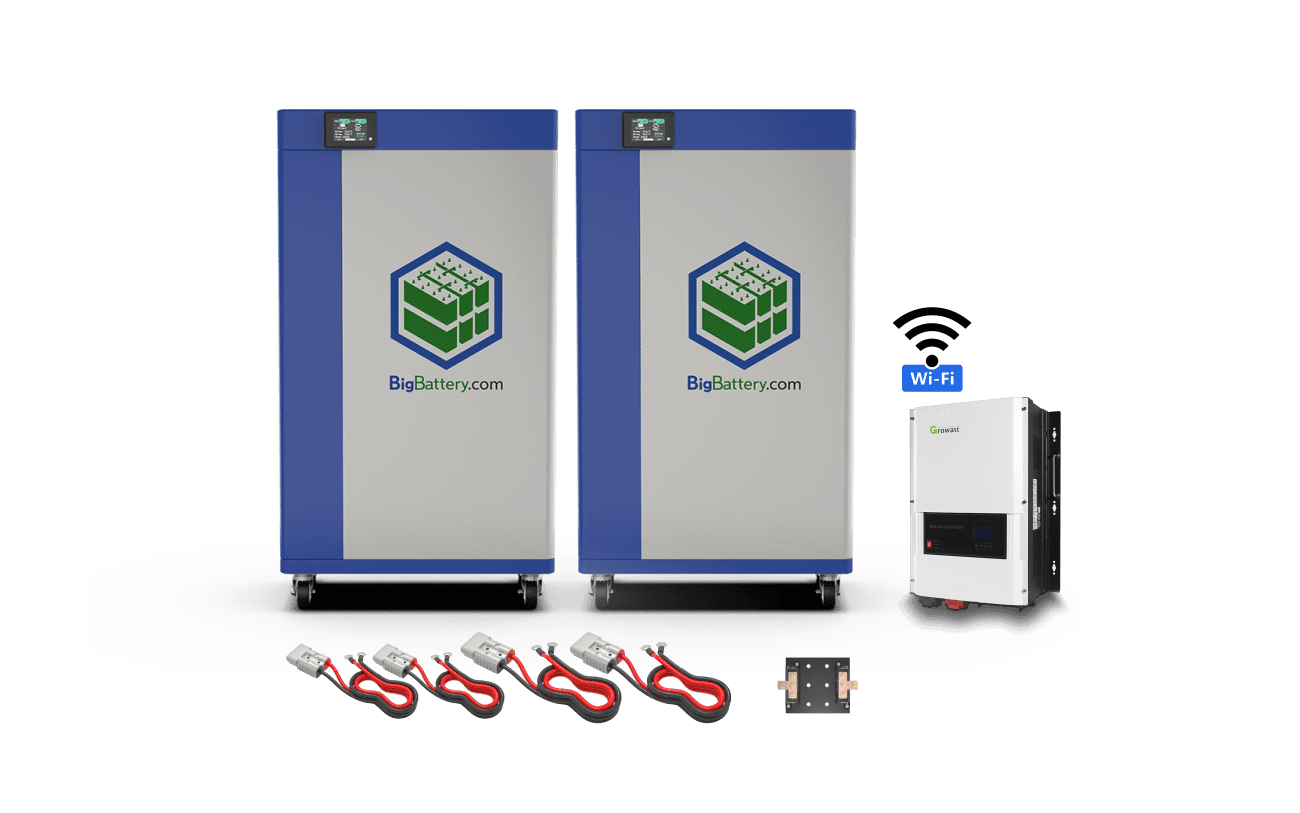

BigBattery 48V 2X KONG ELITE MAX 12K INVERTER KIT – LiFePO4 – 744Ah – 38kWh KIT0893

BigBattery 48V 2X KONG ELITE MAX 12K INVERTER KIT – LiFePO4 – 744Ah – 38kWh KIT0893

Regular price $15,620.00
Regular price Sale price $15,620.00
Sale Sold out
Shipping calculated at checkout.
Quantity
2 × 48V KONG ELITE MAX - LiFePO4 - 372Ah - 19.0kWh

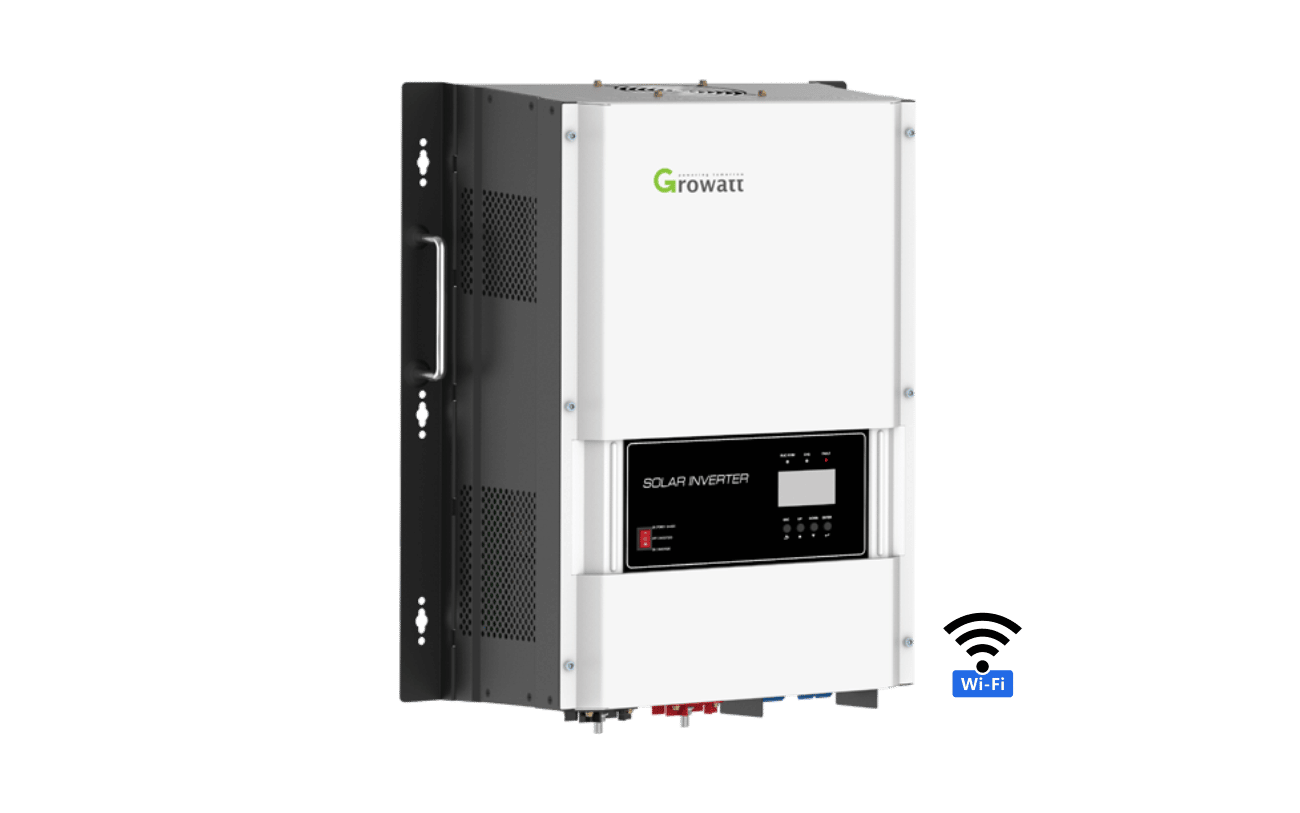

1 × Growatt 12K Inverter

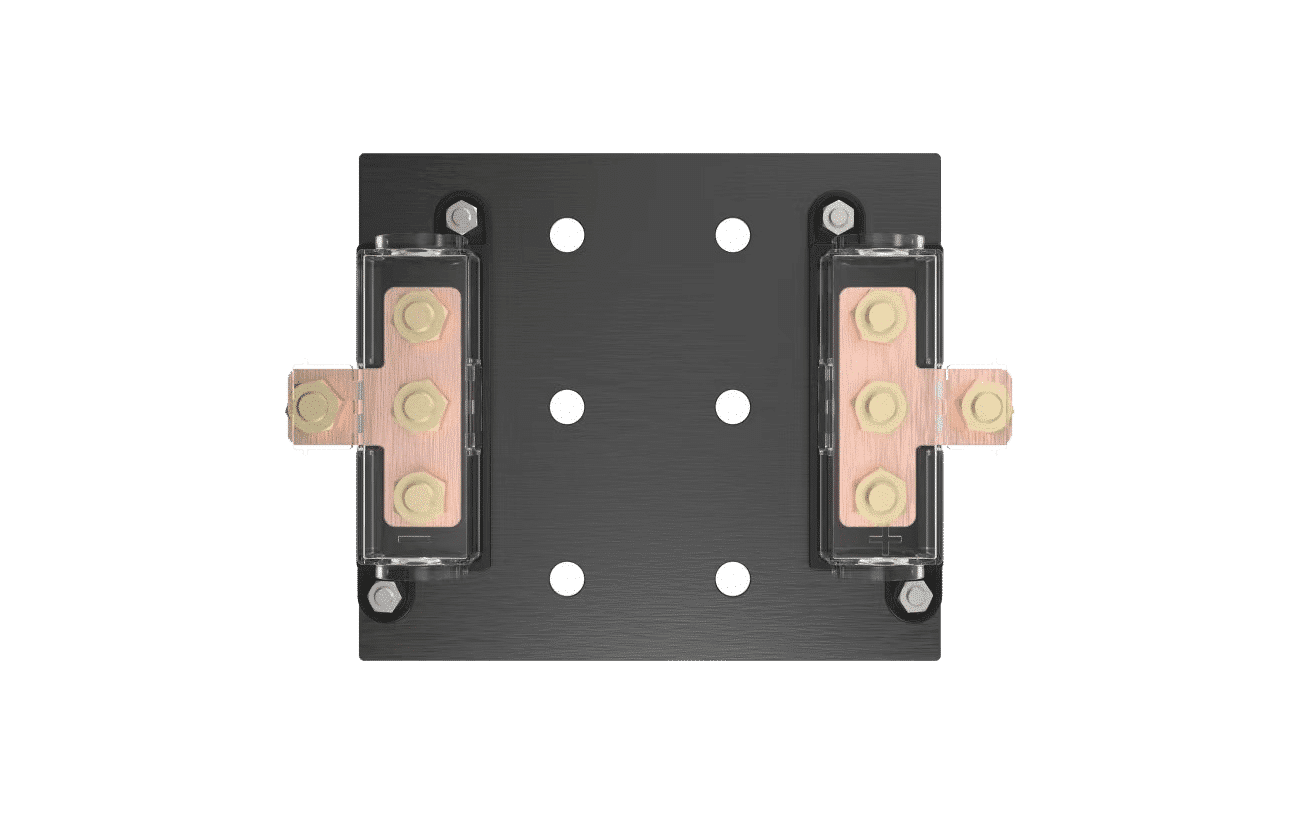

1 × Parallel Busbar

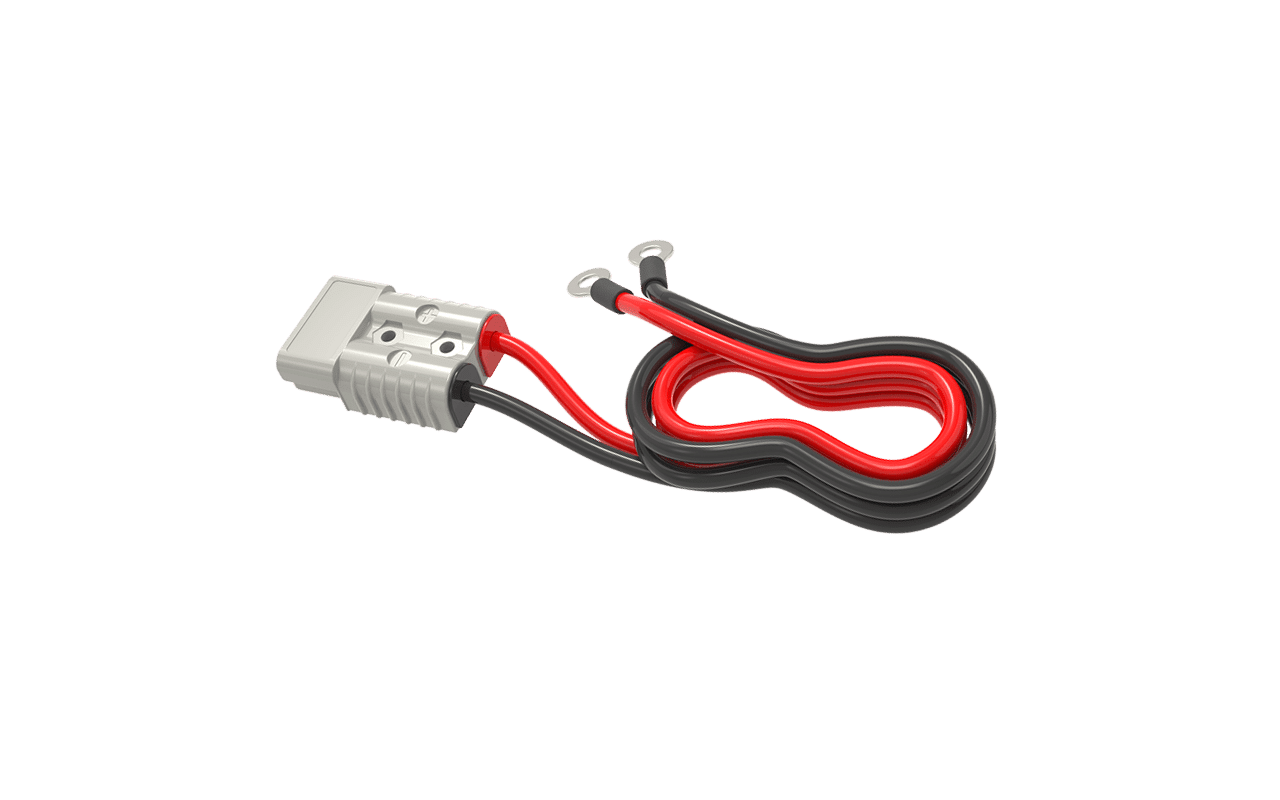

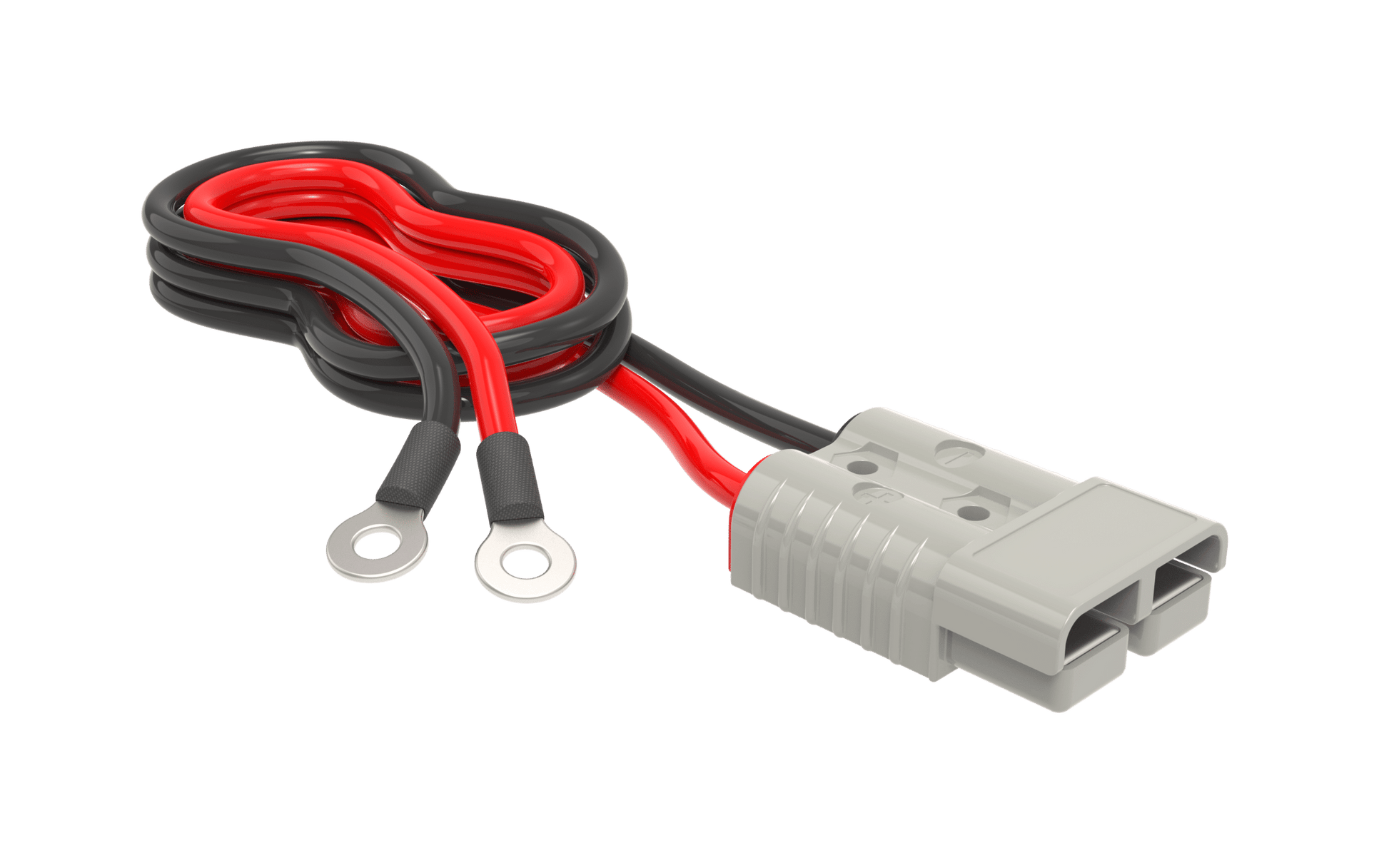

2 × 4AWG 4FT BB350 to Ring Terminal Cable

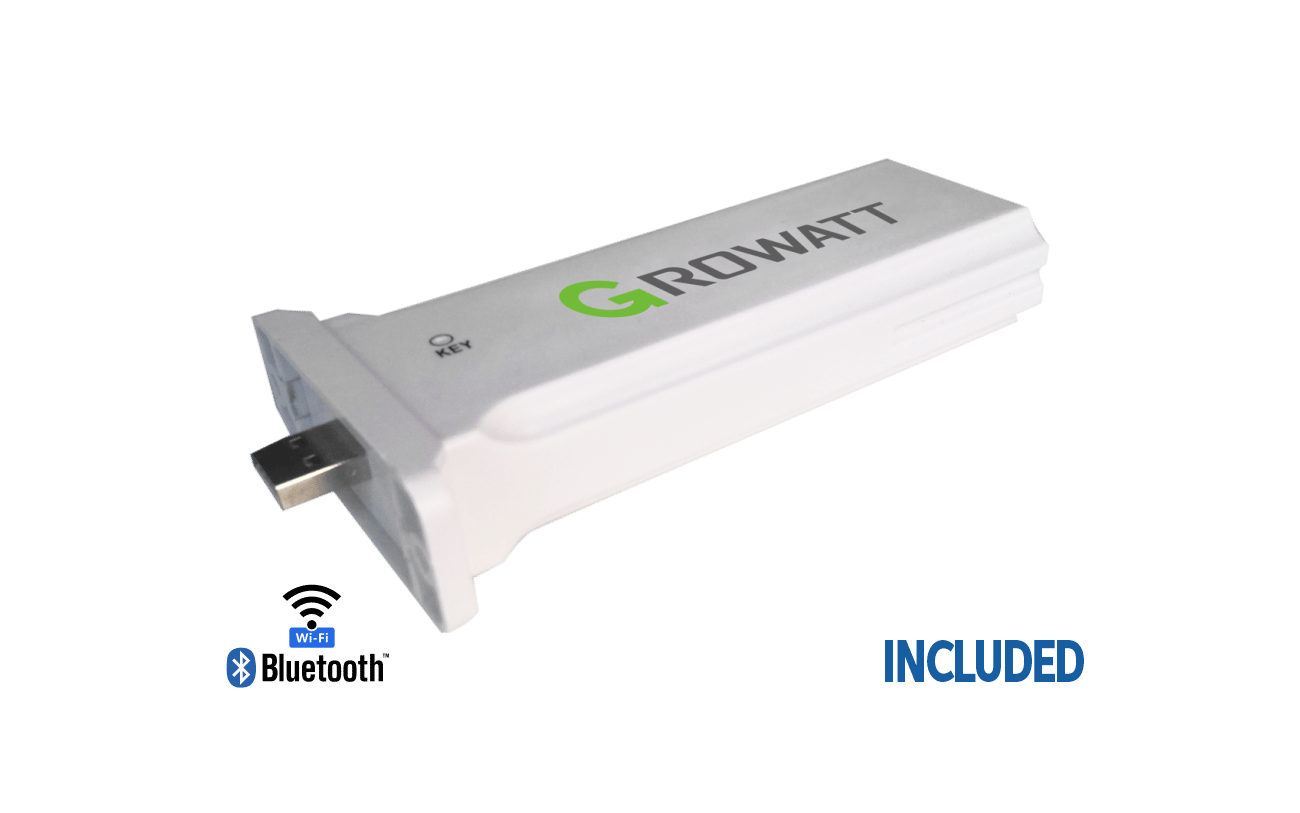

1 × GROWATT-ShineWiFi-F

The 48V Off-Grid Home Elite Max System was designed to completely power all your electronics and heavy duty home appliances in a 4-6 bedroom home. This system can be used as a large-scale emergency power backup or a fully off-grid wind/solar home power system for larger homes.



This is a powerhouse of a system, utilizing the newest inverter and battery technology at the best price in the USA! The 48V/19kWh KONG Elite Max Battery comes with a built-in color LCD Smart Display and new LFP cells guaranteed to last you 10-15 Years (depending on your usage). This battery is calibrated to the 12,000-Wh Growatt Inverter pumping enough AC power to keep everything in your home running smoothly. This complete system comes with all components and parts required to install on your house within a day! The 48V Off-Grid Home MAX System is compatible to work with all AC, wind, solar, generator power and/or any redundancy combination you require.



This system connects to shore power so your battery will automatically charge when connected. The included low-frequency inverter eliminates power spikes within your home, allowing all your electronics in your home to last longer. This kit includes the safest LFP battery technology with our Built-In Triple-Safety Redundancy features. This system requires ZERO Maintenance and lasts 300% longer than lead-acid off-grid systems, and all battery packs come with a 10 Year Warranty!

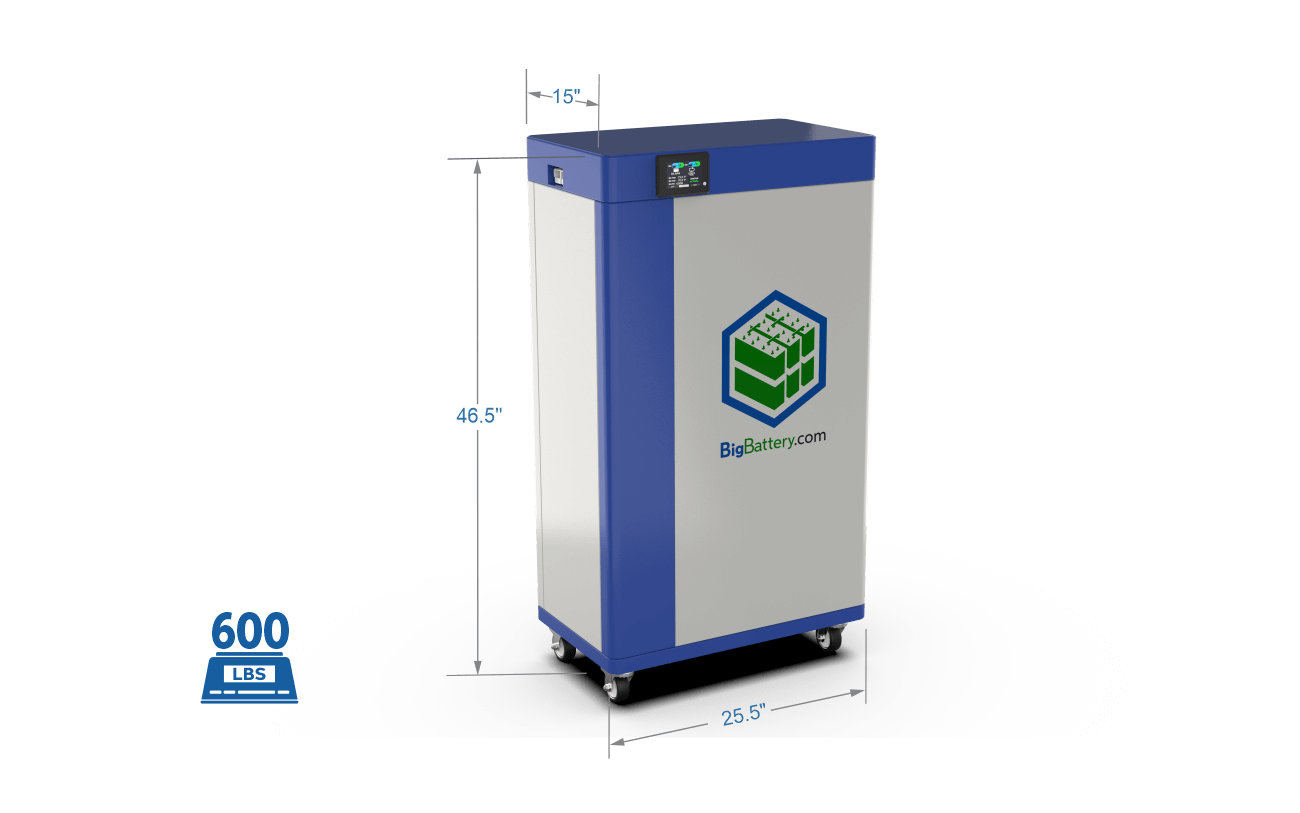

Single Battery Tech Specs

SKU: AKONG-48190-G1
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
Charging Voltage Range: 55.6 - 58.0V
Max Charge Voltage: 58.8V
Operating Voltage Range: 43 – 58.8V
kWh Capacity: 19kWh
Ah Capacity: 372Ah
Cell Configuration: 16S
Max Continuous Discharge Current Amps: 150A
Max Continuous Power: 7500W
Max Discharge Peak Current: 350A (6 Seconds)
Max Charge Current: 90A
Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
Discharge Temperature Range: -30°C (-22°F) / 55°C (131°F)
Optimal Discharge Temp Range: 15°C (59°F) / 35°C (95°F)
Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight: 600 lb (272.2 kg)
Depth: 15 in (38.1 cm)
Width: 25.5 in (64.8 cm)
Height: 46.5 in (118.1 cm)
Safety Features: Fuse (300A) & Battery Management System
(Over/Under Voltage, Over Current, &
Over/Under Temperature Protections)
Max Connections: Up To (8) Parallel



Designed For 48V Applications
