BigBattery 36V GATOR MAX KIT – LiFePO4 – 120Ah – 5kWh KIT0580
BigBattery 36V GATOR MAX KIT – LiFePO4 – 120Ah – 5kWh KIT0580
Couldn't load pickup availability

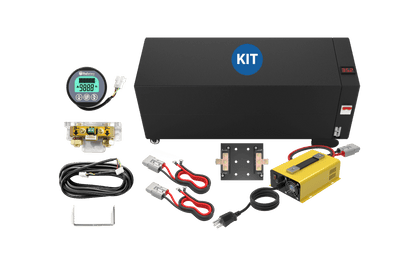

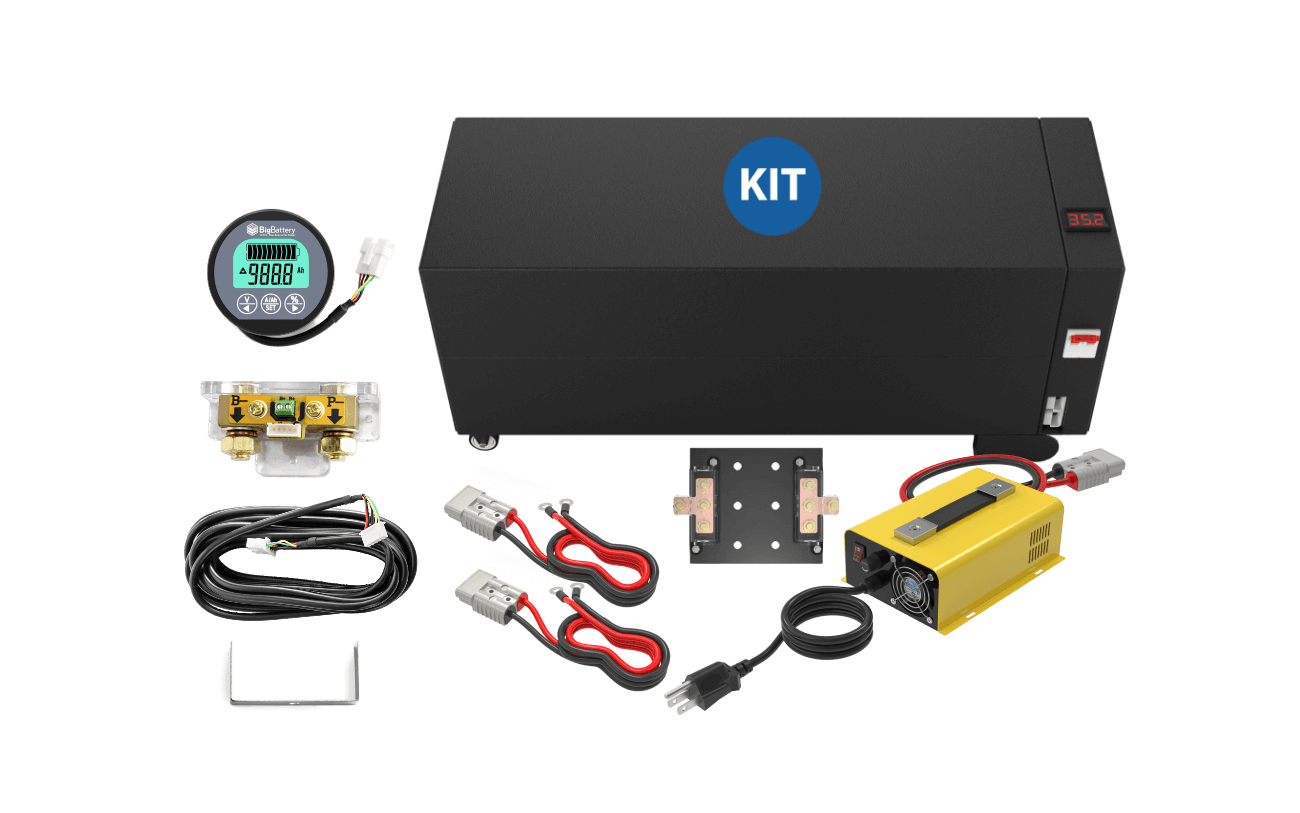

1 × 36V GATOR MAX - LiFePO4 - 120Ah - 5kWh

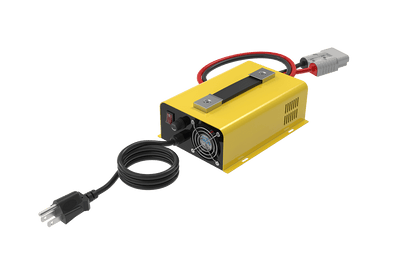

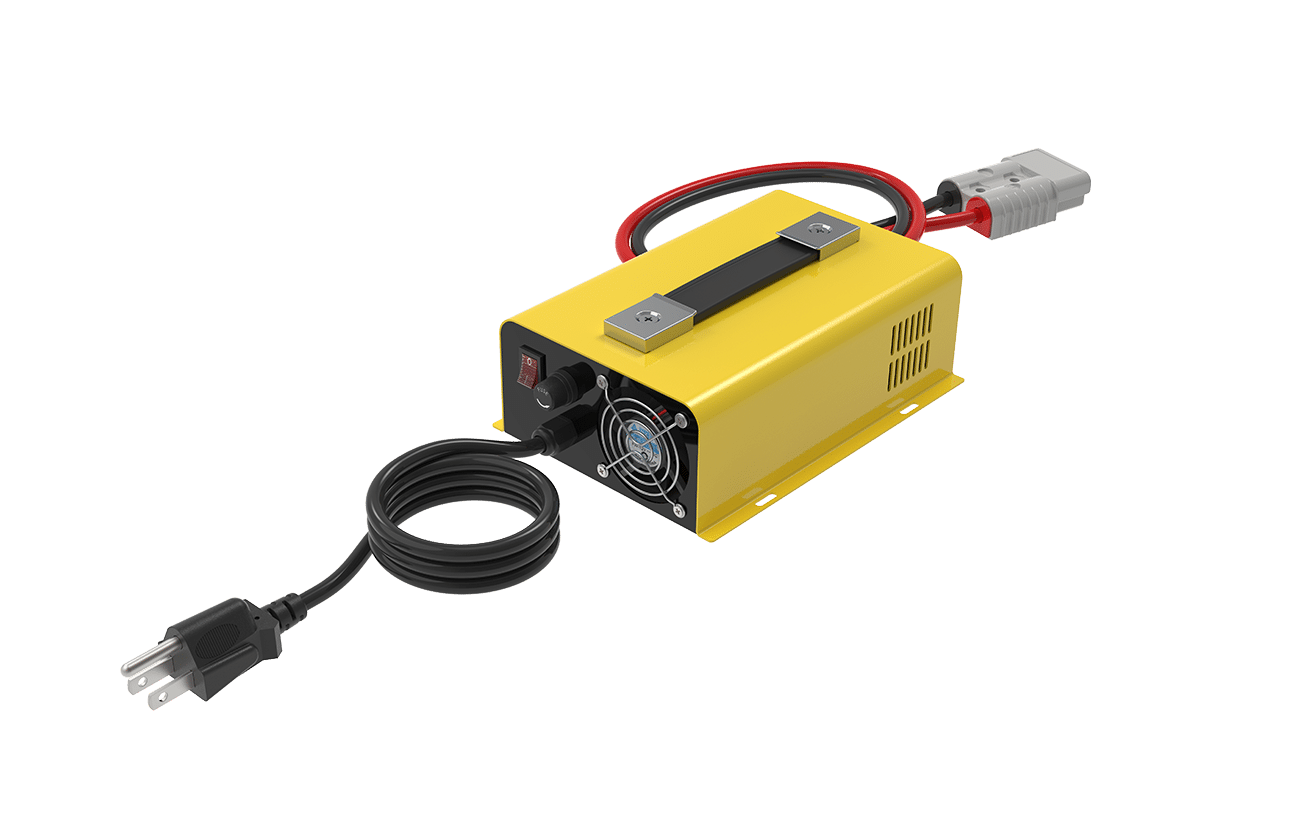

1 × 36V 110V AC 17A Lithium Charger (44.3V DC)
ALL-IN-ONE INDUSTRIAL SOLUTION! BigBattery’s 36V 5 kWh LiFePO4 GATR Max Kit (GATR) was designed with your forklifts, industrial applications, and 36V golf carts in mind.
We’ve packed 5 kWh and 120 Ah of capacity, brand new LFP cells, and our advanced BMS with proprietary Triple Safety Redundancy all into one sleek form factor. We’ve even included a set of sturdy caster wheels to the bottom of the unit for easy transportation. Warehouses across the country have seen the benefits of upgrading their forklift fleet to lithium-ion, saving space and weight, reducing cost, eliminating maintenance, and cutting down significantly on charging time. We designed this kit to be an all in one, plug and play solution for your forklifts and you’ll see and feel the difference.
Outfit your golf cart, forklifts, or entire warehouse with the easily installed and power-dense 36V GATR Max Kit!
Tech Specs
| SKU: | AGATR-36050-G1 |
| System Voltage: | 36V |
| Nominal Voltage: | 25.6V |
| Chemistry: | LiFePO4 |
| Charging Voltage Range: | 45.2 - 47.1V |
| Max Charge Voltage: | 48.75V |
| Operating Voltage Range: | 36 – 45V |
| kWh Capacity: | 5kWh |
| Ah Capacity: | 120Ah |
| Cell Configuration: | 13S 6P |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 6400W |
| Max Discharge Peak Current: | 300A (6 Seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -30°C (-22°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 120 lb (54.4 kg) |
| Depth: | 10.2 in (25.9 cm) |
| Width: | 29.7 in (75.4 cm) |

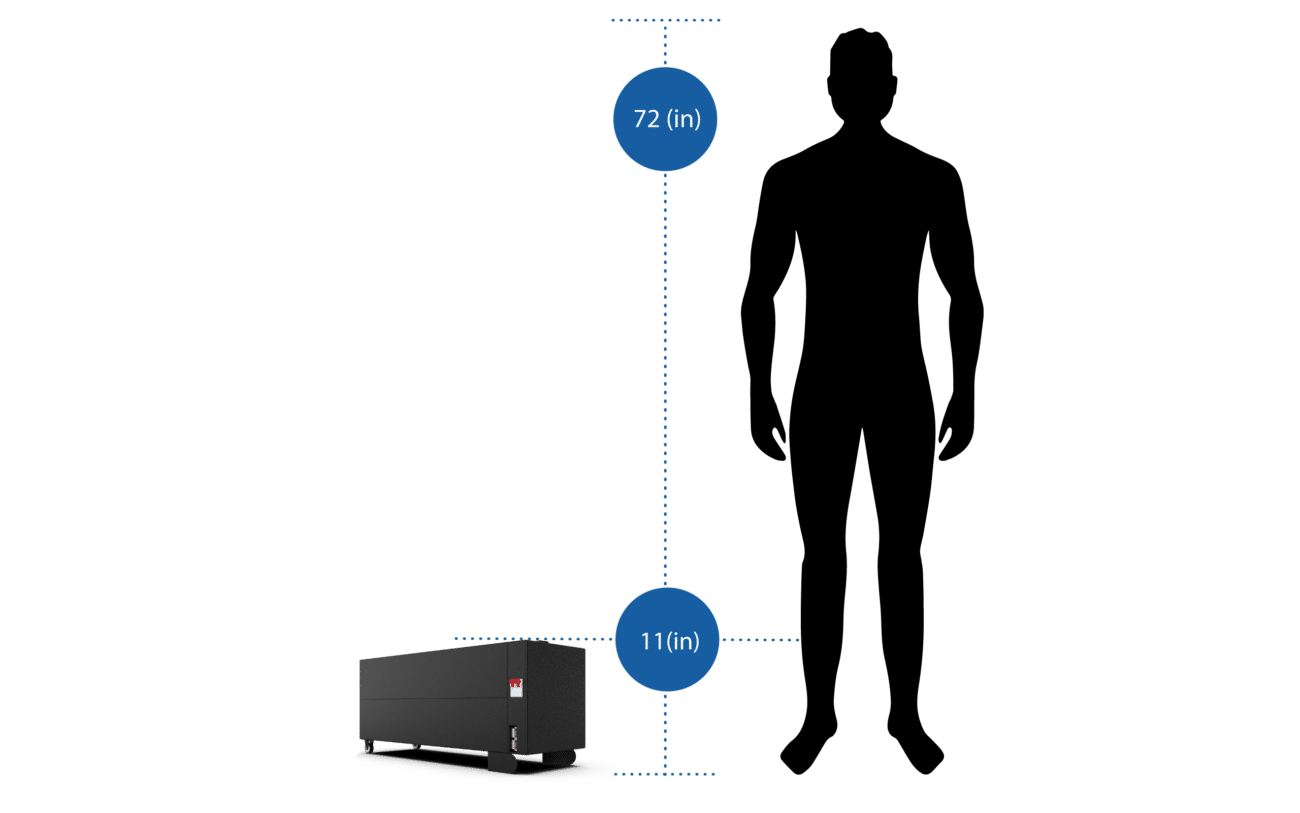

| Height: | 11 in (27.9 cm) |
| Safety Features: | Breaker (2x 63A) Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
Designed For 36V Applications
- Lead Acid Replacement
- Intense Heat and Cold
- Other Industrial Uses
- Mobile Power
- Pallet Jacks
- Utility Carts
- Golf Carts
- Man Lifts
- Forklifts
