BigBattery 350A Battery Capacity Meter KIT0964
BigBattery 350A Battery Capacity Meter KIT0964
Couldn't load pickup availability
Ensure you’re always up to date on the performance and status of your power when you outfit your battery system with this advanced Capacity Meter from BigBattery!

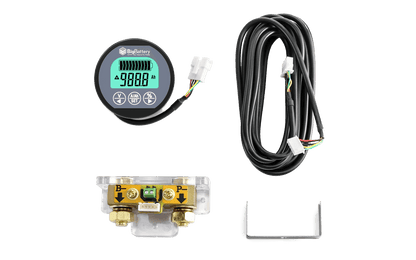

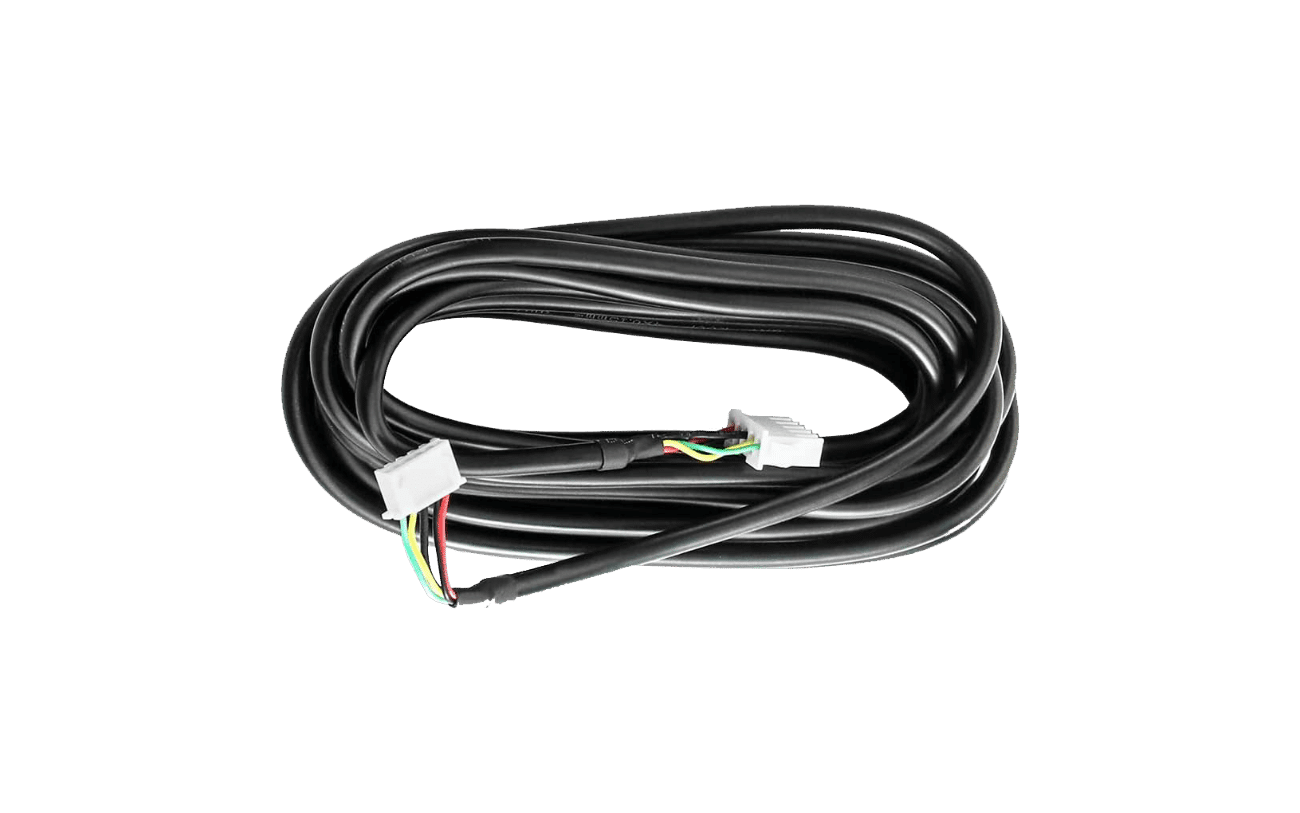

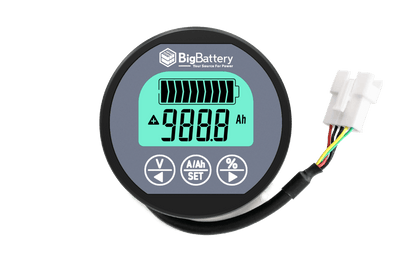

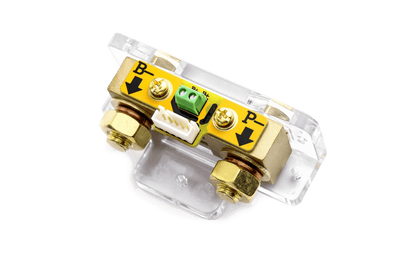

This meter features an in-depth LCD display, providing metrics such as charge and discharge current, voltage, remaining capacity, and State of Charge, so monitoring your batteries is as simple as a glance. Plus, this meter is easily installed, and comes with a low-resistance copper shunt and base mount, mounting bracket, and shielded wiring for improved signal stability.
With precise current detection and a durable, water-resistant construction, you can be sure that this capacity meter is built to last, supporting your power and your applications for years to come. Equip your power system with undeniably reliable battery monitoring tech when you order the 350A Battery Capacity Meter today!
Specifications
| Working Voltage: | 8 - 120V |
| Working Dissipation: | 10 - 12mA |
| Standby Dissipation: | 0.5 - 0.6mA |
| Sleep Dissipation: | 50 - 60uA |
| Voltage Accuracy: | ±1% |
| Current Accuracy: | ±1% |
| Capacity Accuracy: | ±1% |
| Preset Capacity Value: | 0.1 - 999Ah |
| Sampler Current: | 350A (500A Peak) |
| Temperature Range: | 14ºF - 140ºF (-10ºC - 60ºC) |
| Weight: | 0.9 lbs (410 g) |
| Height: | 2.32 in (59 mm) |
| Width: | 2.32 in (59 mm) |
| Depth: | 0.78 in (20 mm) |
| Cable Length: | 13.1 ft (4 m) |
Features
- High-Precision Current Detection
- Durable & Water Resistant
- In-Depth LCD Display
- Testing Data Storage
- Pure Copper Shunt
- Shielded Wiring
