BigBattery

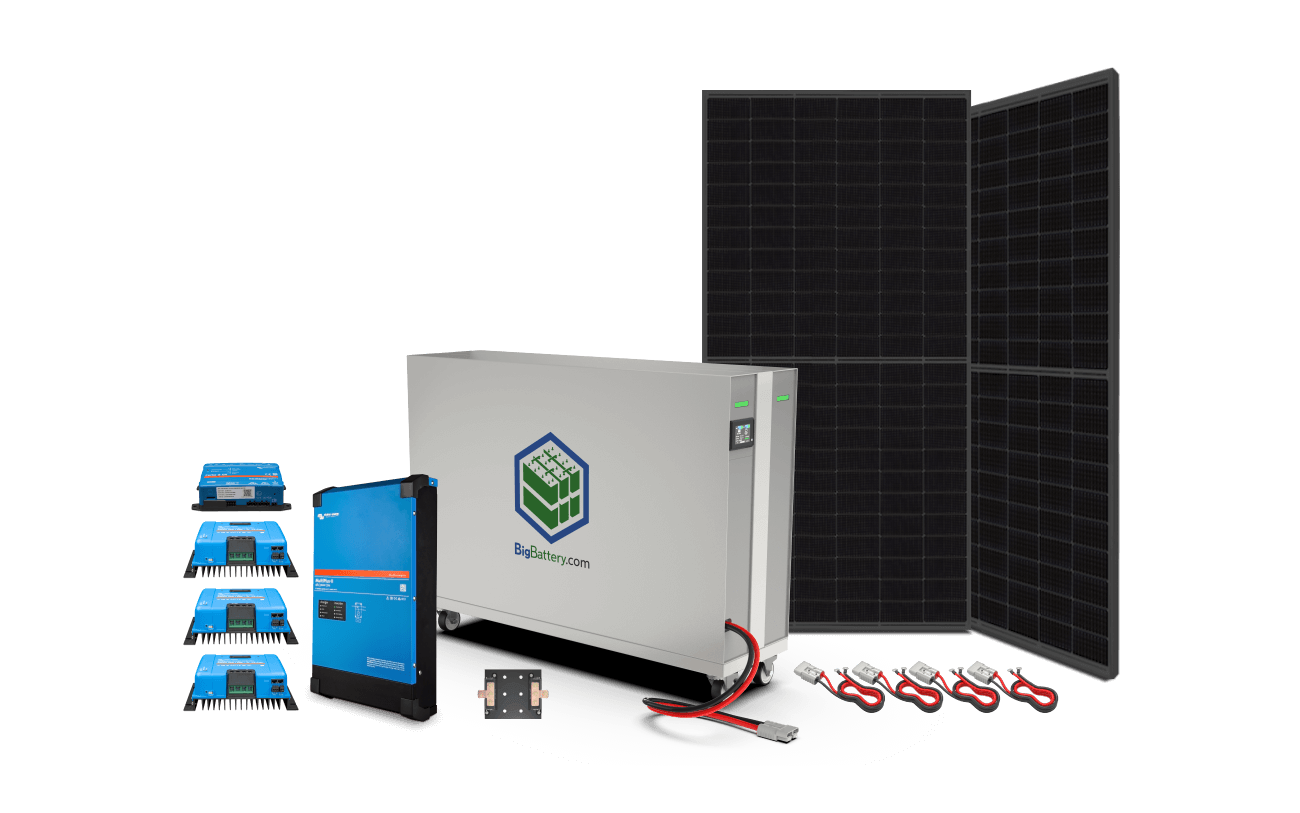

BigBattery 2x Rhino Complete Kit KIT0945

BigBattery 2x Rhino Complete Kit KIT0945

Regular price $22,160.00
Regular price Sale price $22,160.00
Sale Sold out
Shipping calculated at checkout.
Quantity

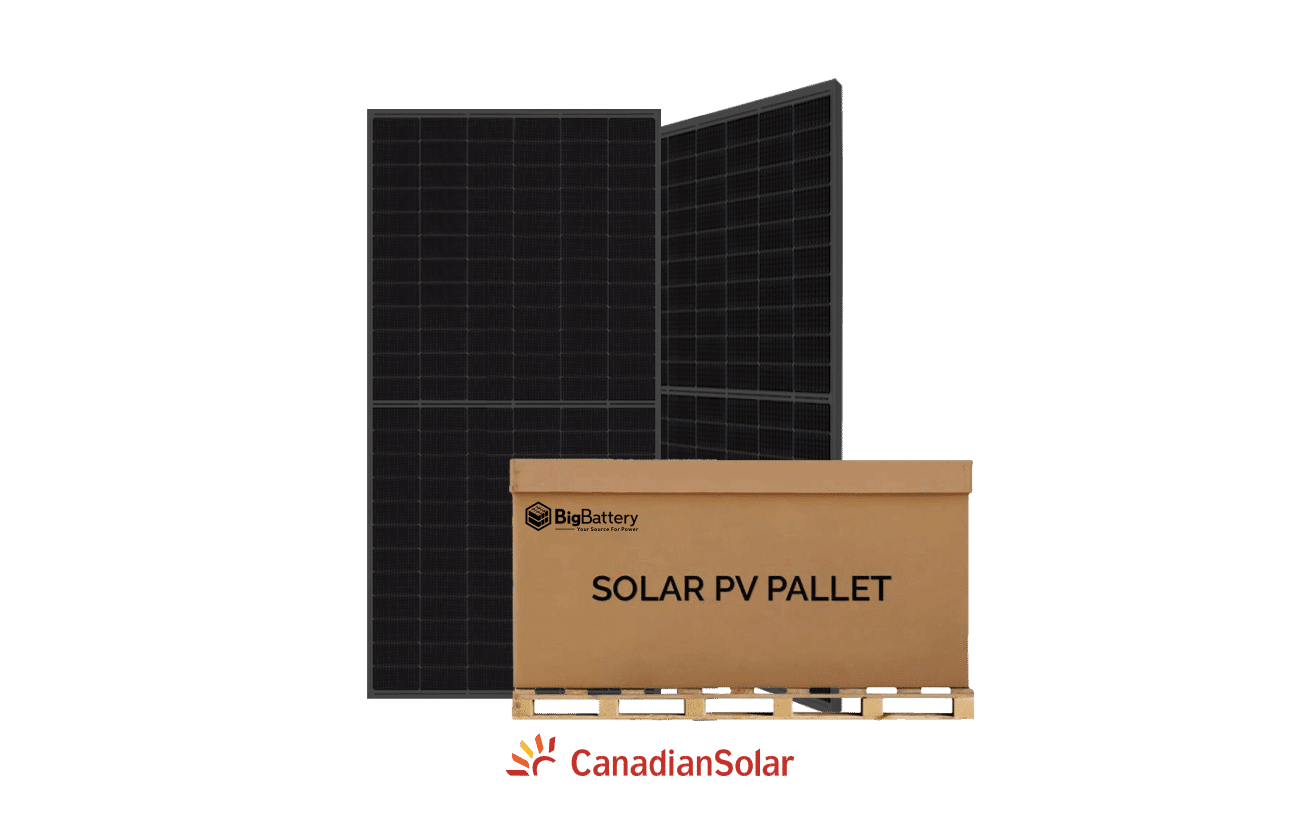

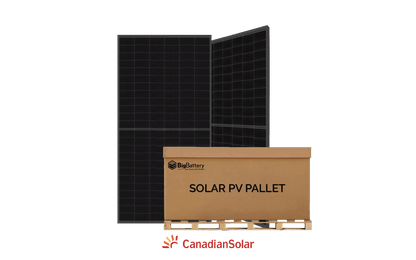

1 × 12kW 400W Low Profile Black Solar Panel Pallet

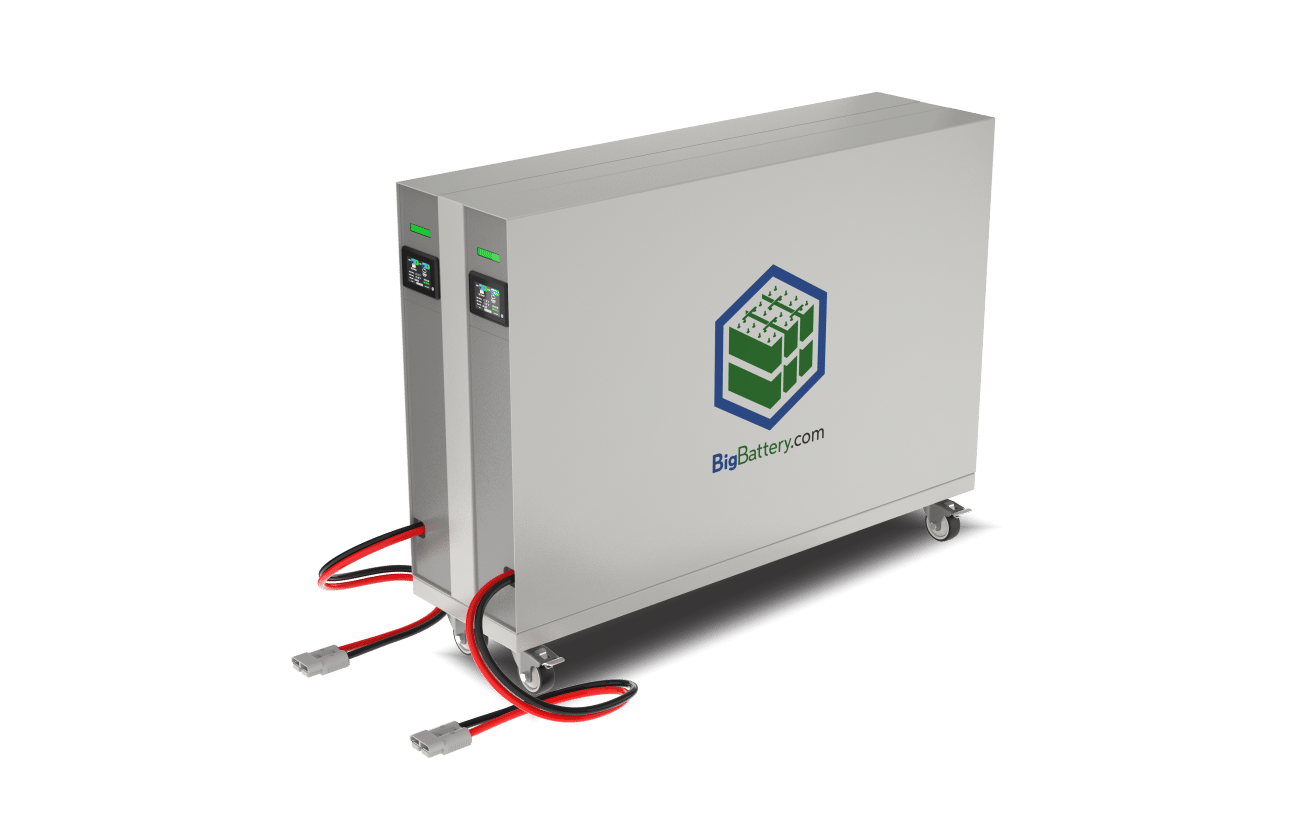

2 × 48V RHINO - LiFePO4 - 276Ah - 14kWh

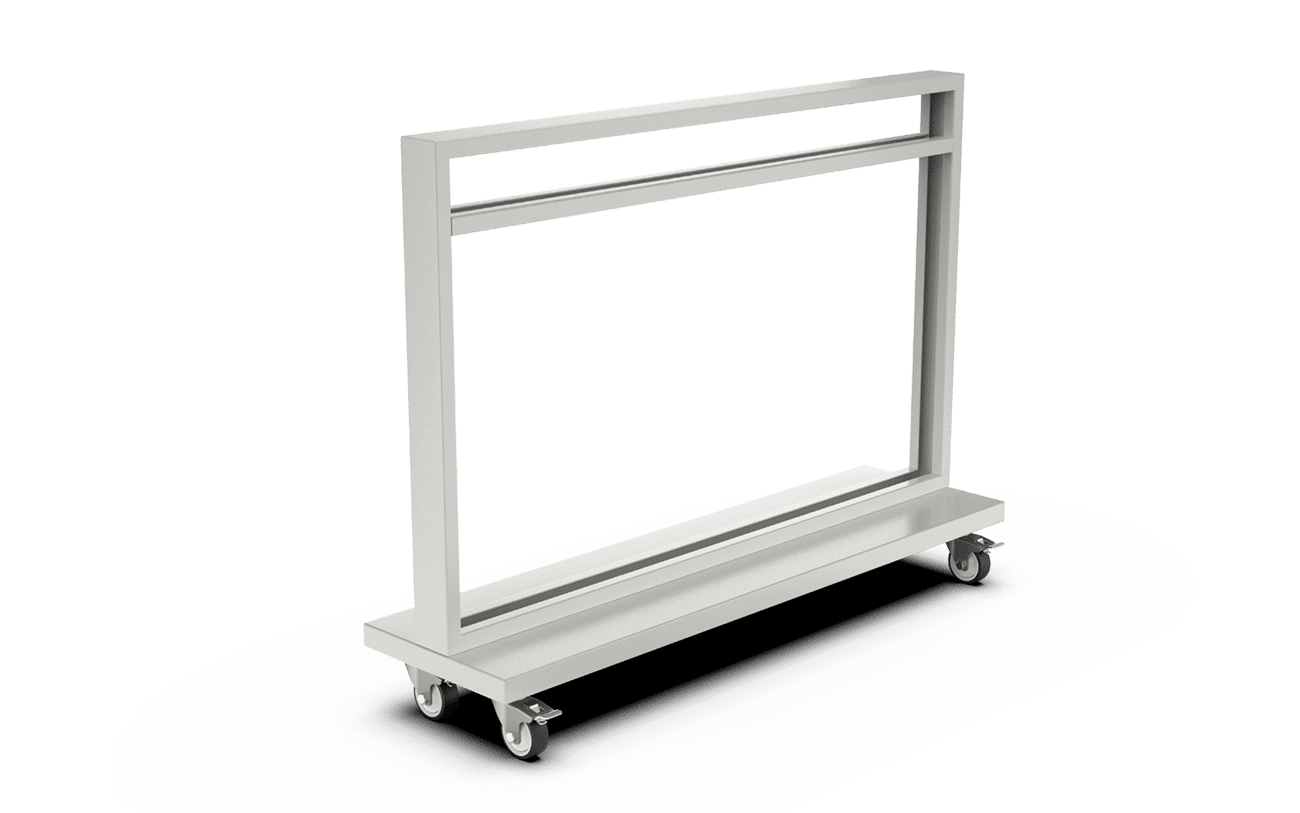

1 × Mobile Cart for two 48V Rhinos

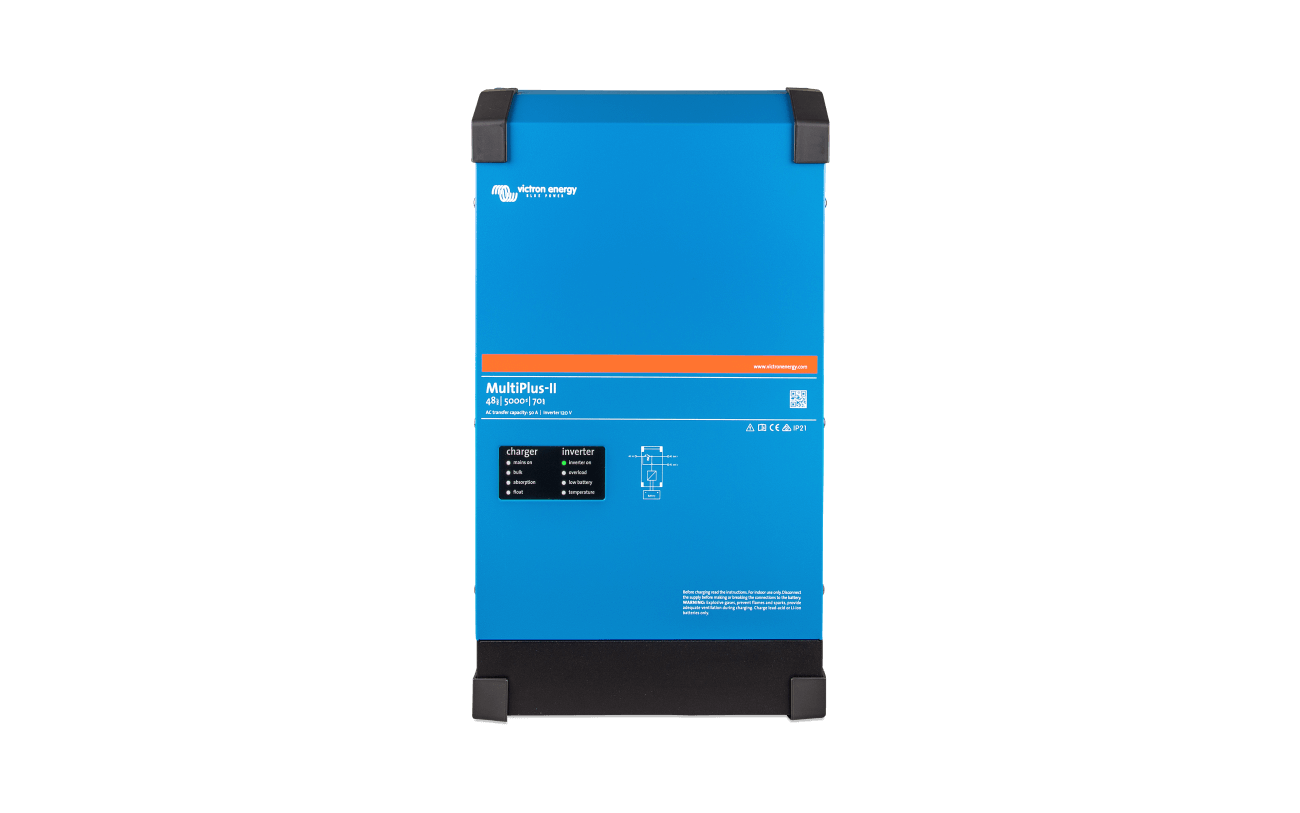

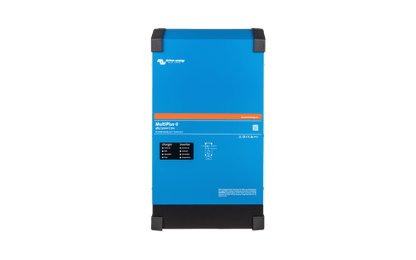

1 × 48V MultiPlus-II 120V Inverter/Charger

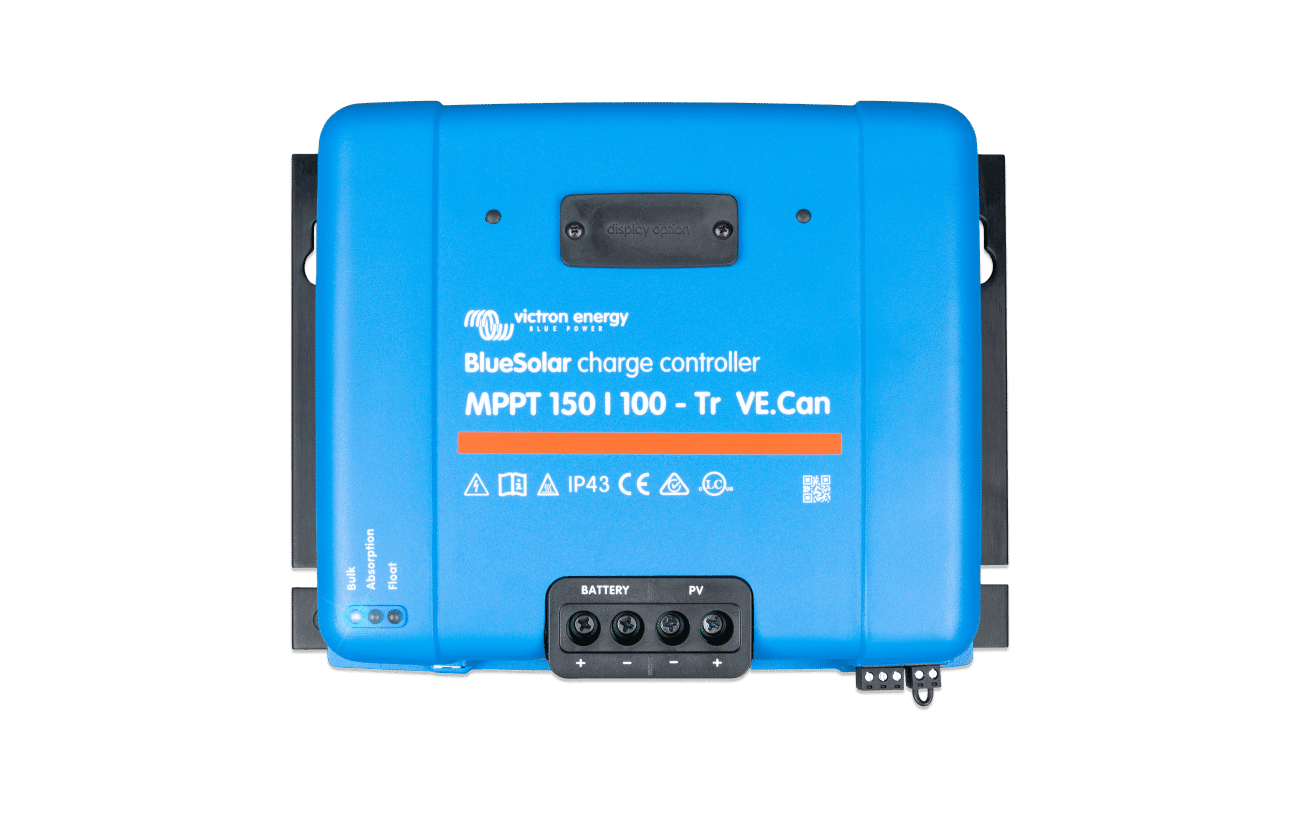

3 × SmartSolar Charge Controller

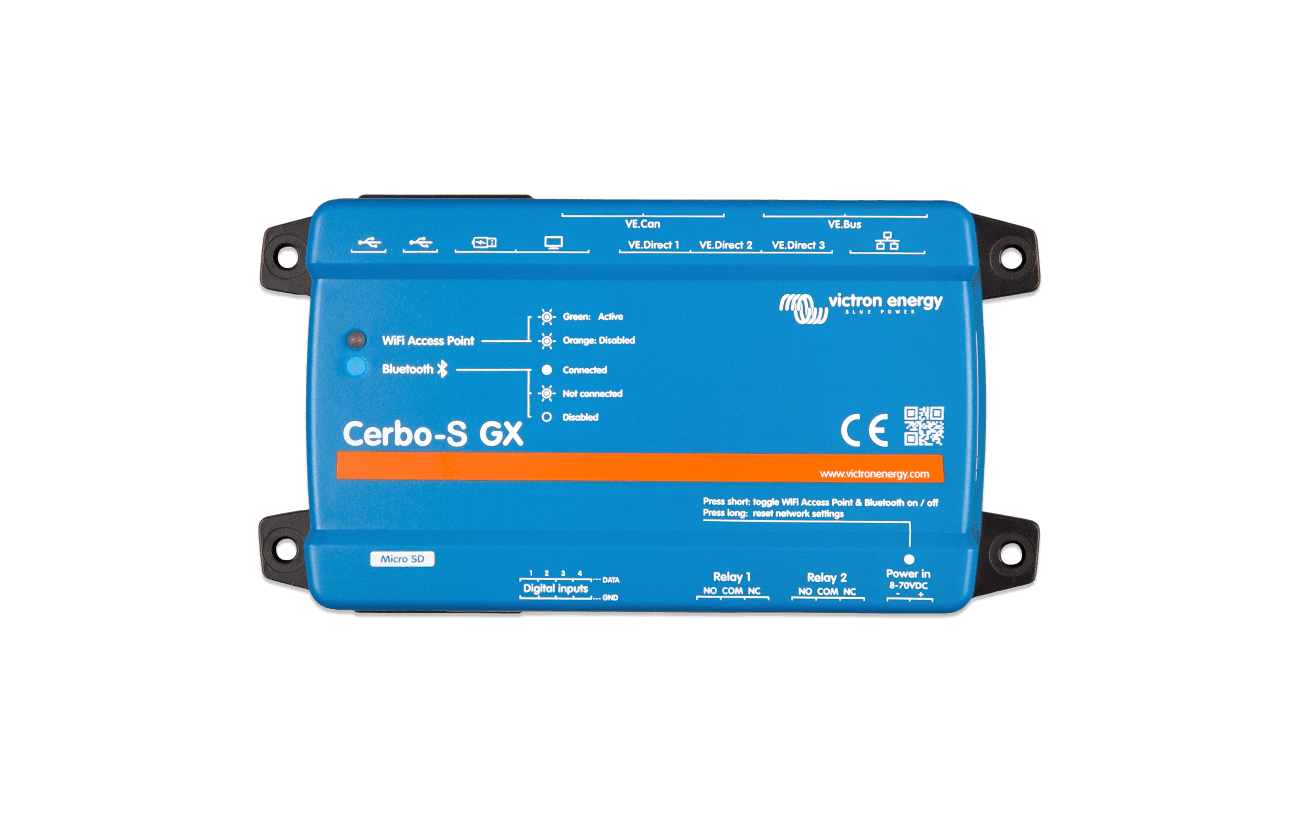

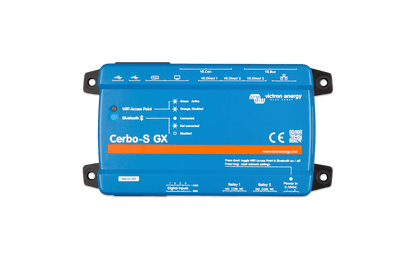

1 × Cerbo-S GX

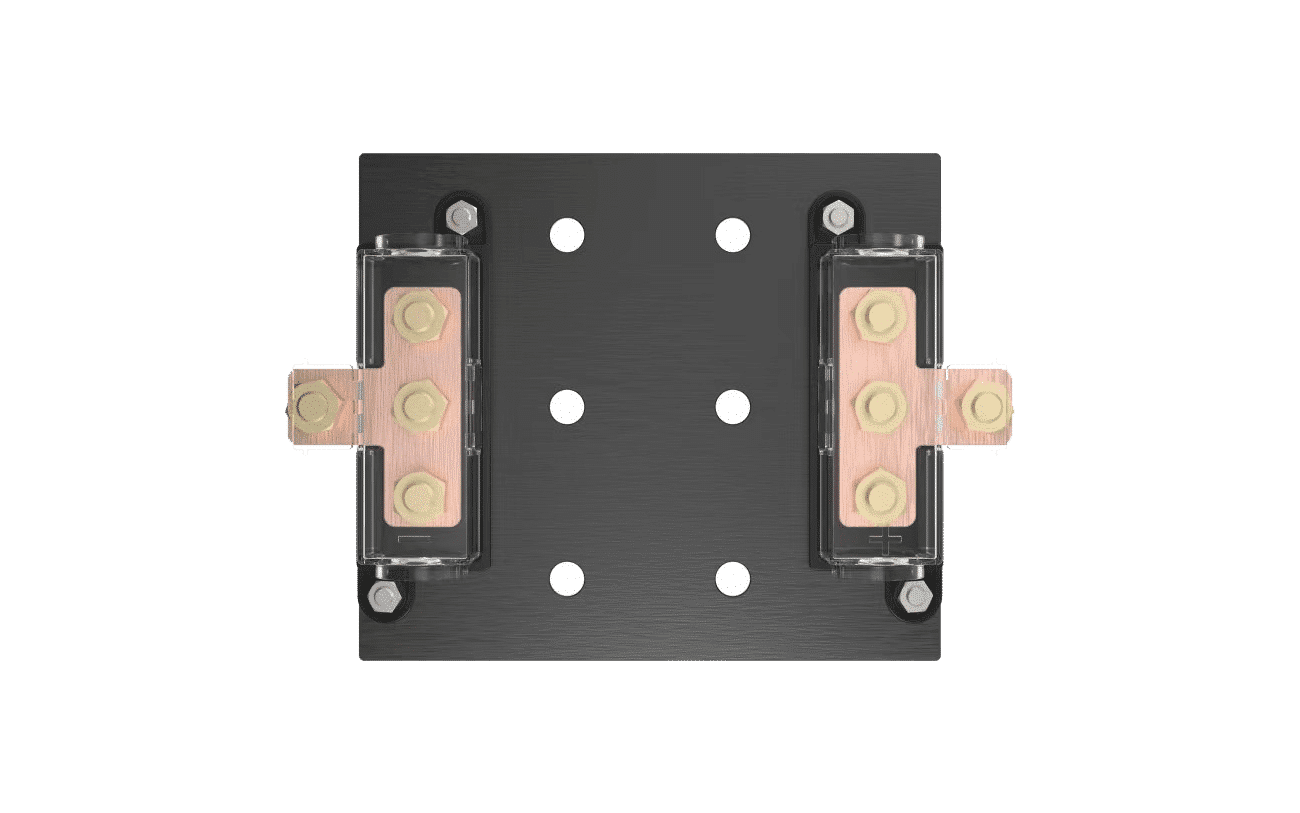

1 × Parallel Busbar

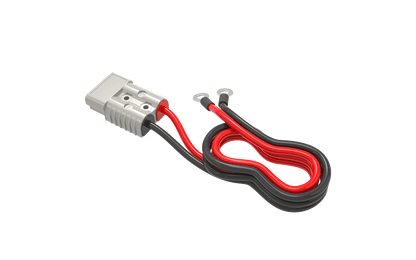

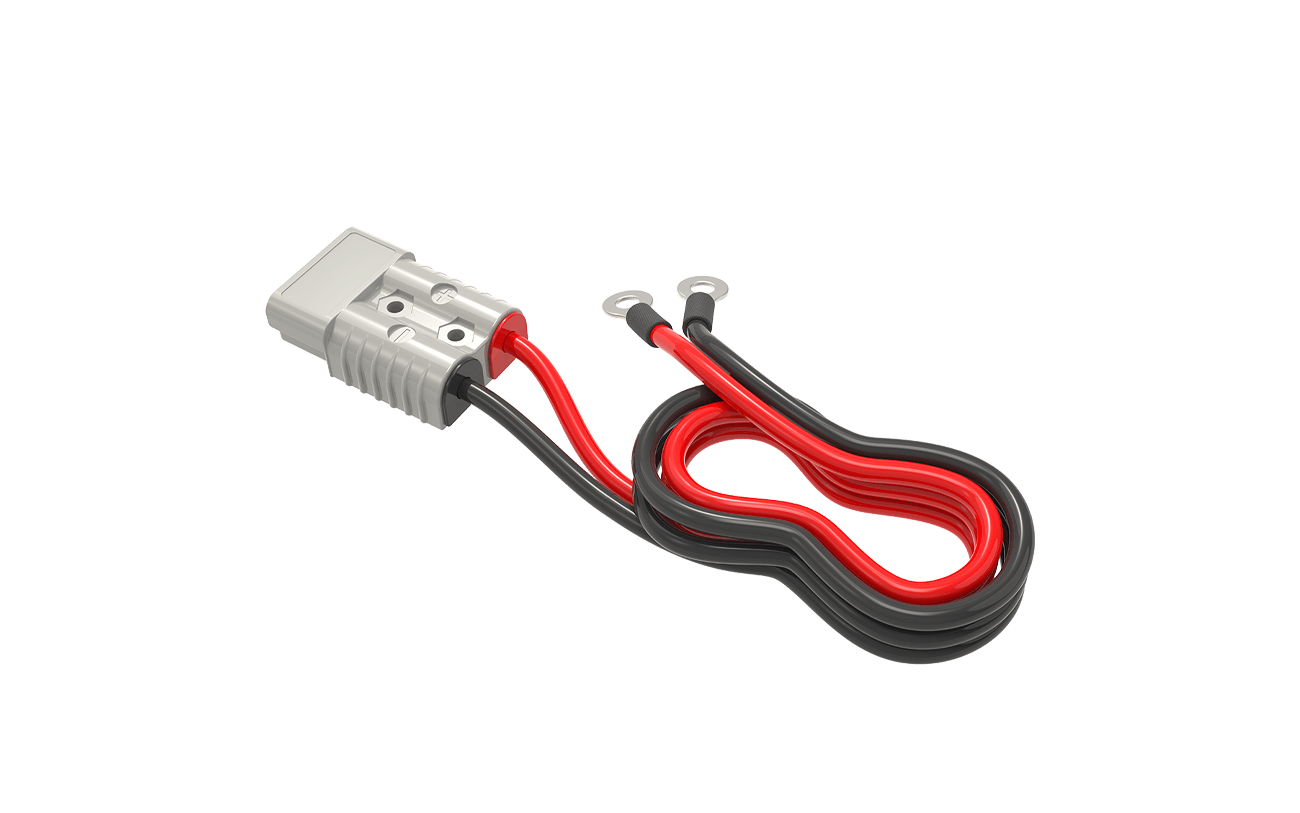

4 × 4AWG 4FT BB175 to Ring Terminal Cable

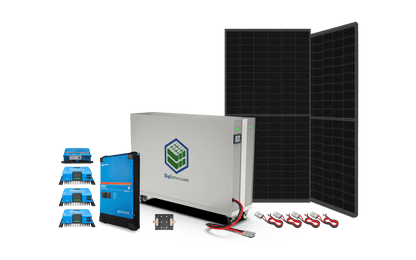

Looking to turn your home or cabin into an off-grid homestead? Look no further! The 2x RHINO Complete Kit comes with everything you need to get your power system up and running in no time!



Not only does this kit come with (2) LiFePO4 48V RHINO batteries, with a combined capacity of 28kWh, but also includes every component and cable you’ll need to create a massive solar power system in your home, including Victron’s new MultiPlus-II. The MultiPlus-II is a highly-efficient inverter and charger, boasting 5000VA of continuous output power, with multi-phase outputs, a built-in transfer switch, as well as Victron’s PowerControl and PowerAssist functionality for ultimate system optimization.



This kit also includes Victron’s cutting-edge Cerbo-S GX for remote monitoring and configuration, a SmartSolar charge controller for connecting solar panel arrays, and a full pallet of 400W monocrystalline solar panels, totaling 12kW of power! The Cerbo-S GX acts as your primary communication center for your power system, allowing you to configure, monitor, and respond to your system from anywhere in the world, while your SmartSolar charge controller handles the incoming energy from your solar panels with unmatched conversion efficiency, flexible charge algorithms, and programmable relays.



There’s never been a better time to earn your energy independence and protect your family, and your home, from rolling blackouts, natural disasters, or grid instability. Shop the 2x RHINO Complete Kit today!





Single Battery Tech Specs

SKU: ARHNR-48140-G1
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
Charging Voltage Range: 55.6 - 58.0V
Max Charge Voltage: 58.8V
Operating Voltage Range: 43 – 58.8V
kWh Capacity: 14kWh
Ah Capacity: 276Ah
Cell Configuration: 16S
Max Continuous Discharge Current: 175A
Max Continuous Power: 7500W
Max Discharge Peak Current: 350A (6 Seconds)
Max Charge Current: 90A
Charge Temperature Range: -20°C (-4°F) / 65°C (149°F)
Discharge Temperature Range: -35°C (-31°F) / 65°C (149°F)
Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight: 290 lb (131.5 kg)
Depth: 4.4 in (11.2 cm)
Width: 43.3 in (110 cm)
Height: 26.7 in (67.8 cm)
Safety Features: Fuse (300A) & Battery Management System
(Over/Under Voltage, Over Current, &
Over/Under Temperature Protections)
Max Connections: Up To (8) Parallel



Designed For 48V Applications
