BigBattery 2x Kong Elite Max Complete Kit KIT0947
BigBattery 2x Kong Elite Max Complete Kit KIT0947
Regular price
$23,830.00
Regular price
Sale price
$23,830.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

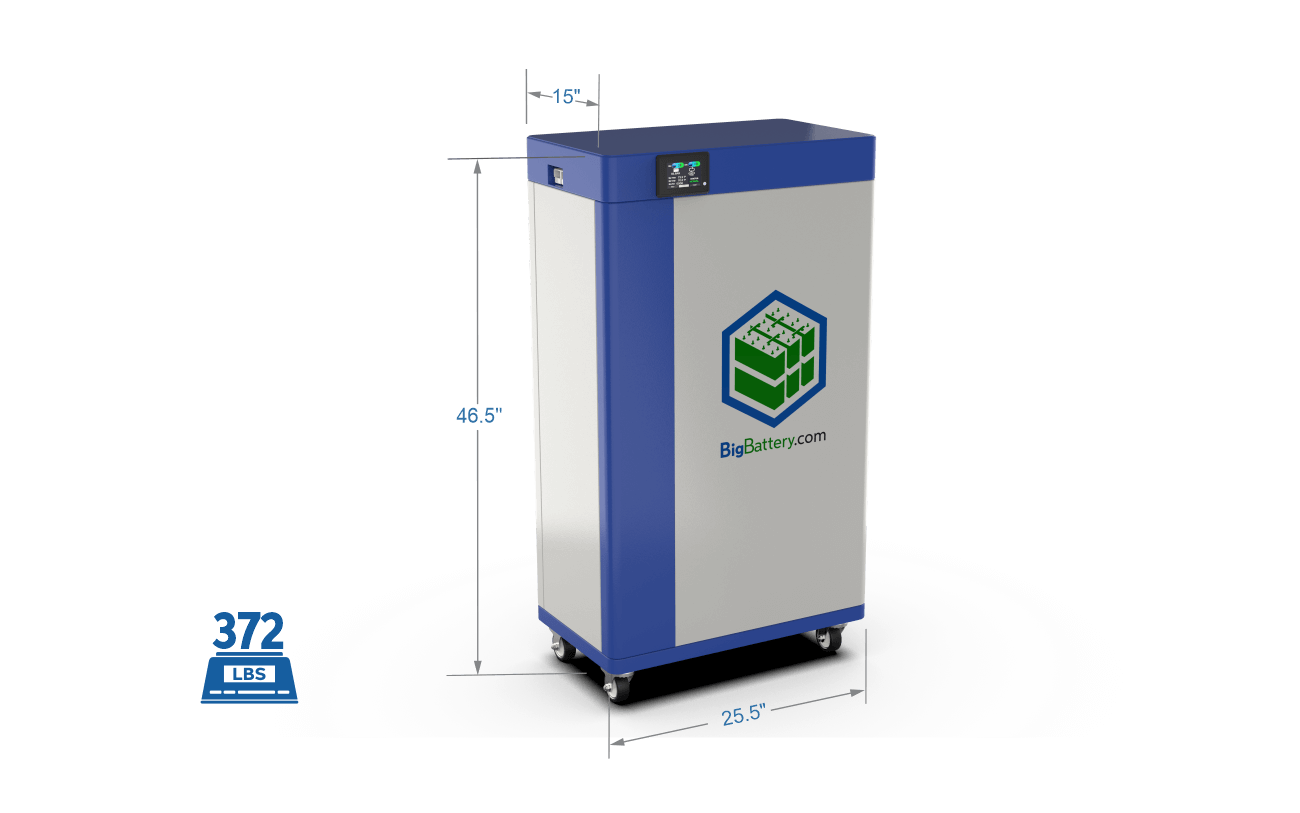

2 × 48V KONG ELITE MAX - LiFePO4 - 372Ah - 19.0kWh

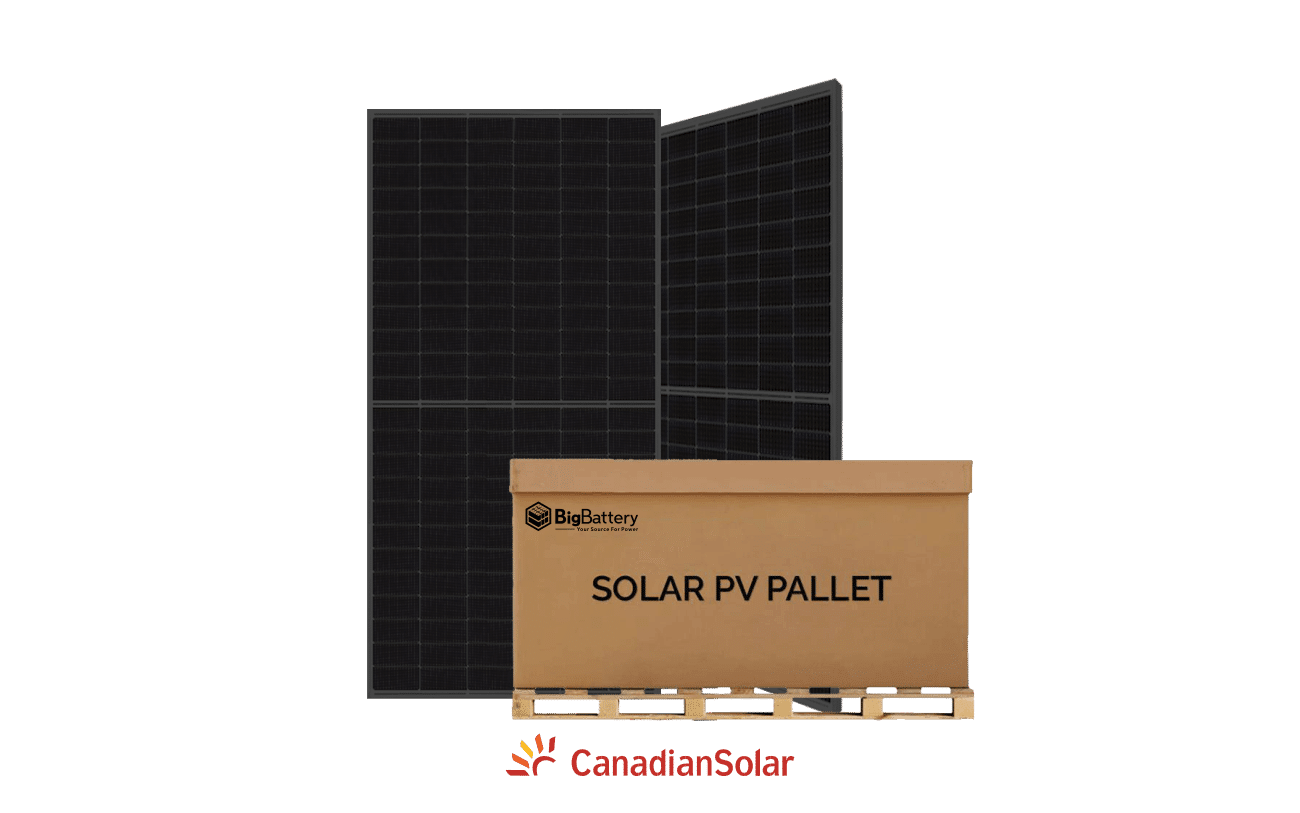

1 × 12kW 400W Low Profile Black Solar Panel Pallet

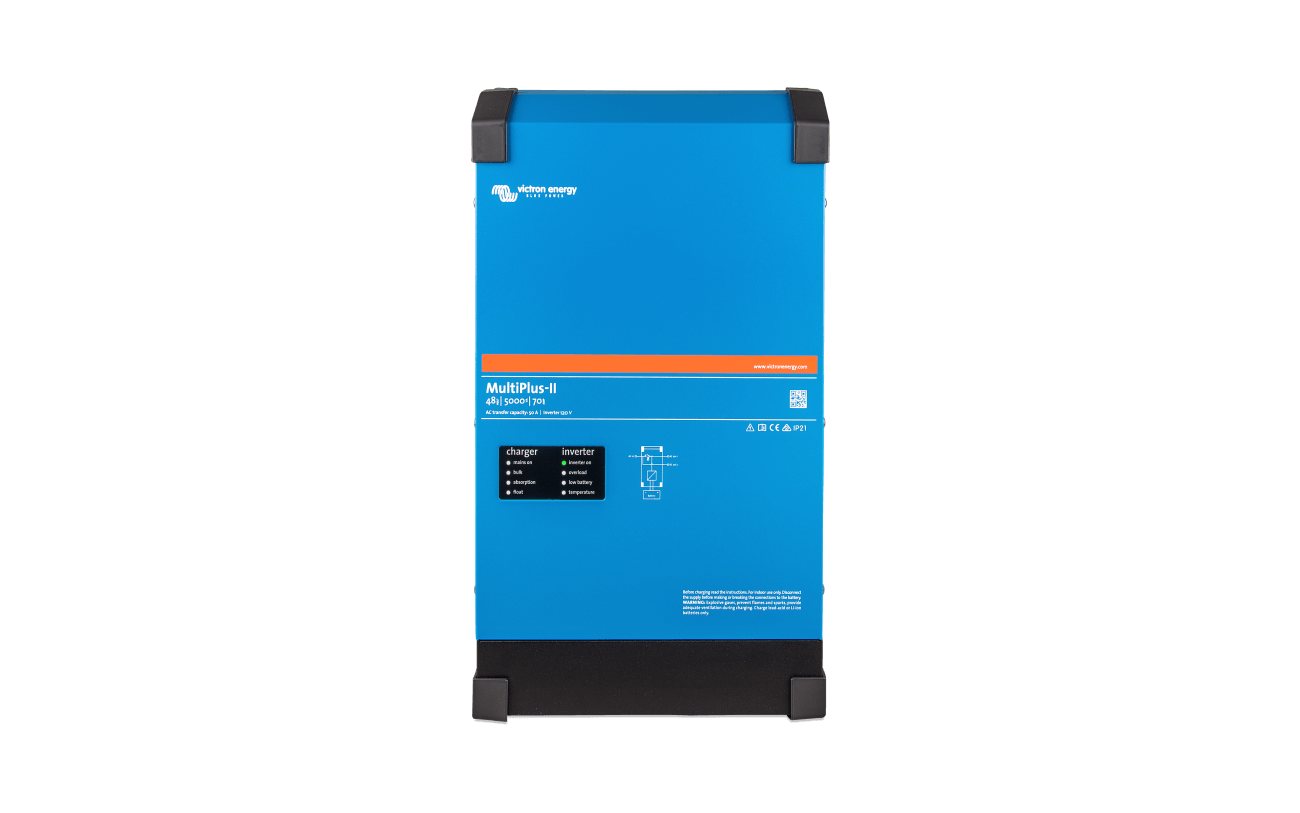

1 × 48V MultiPlus-II 120V Inverter/Charger

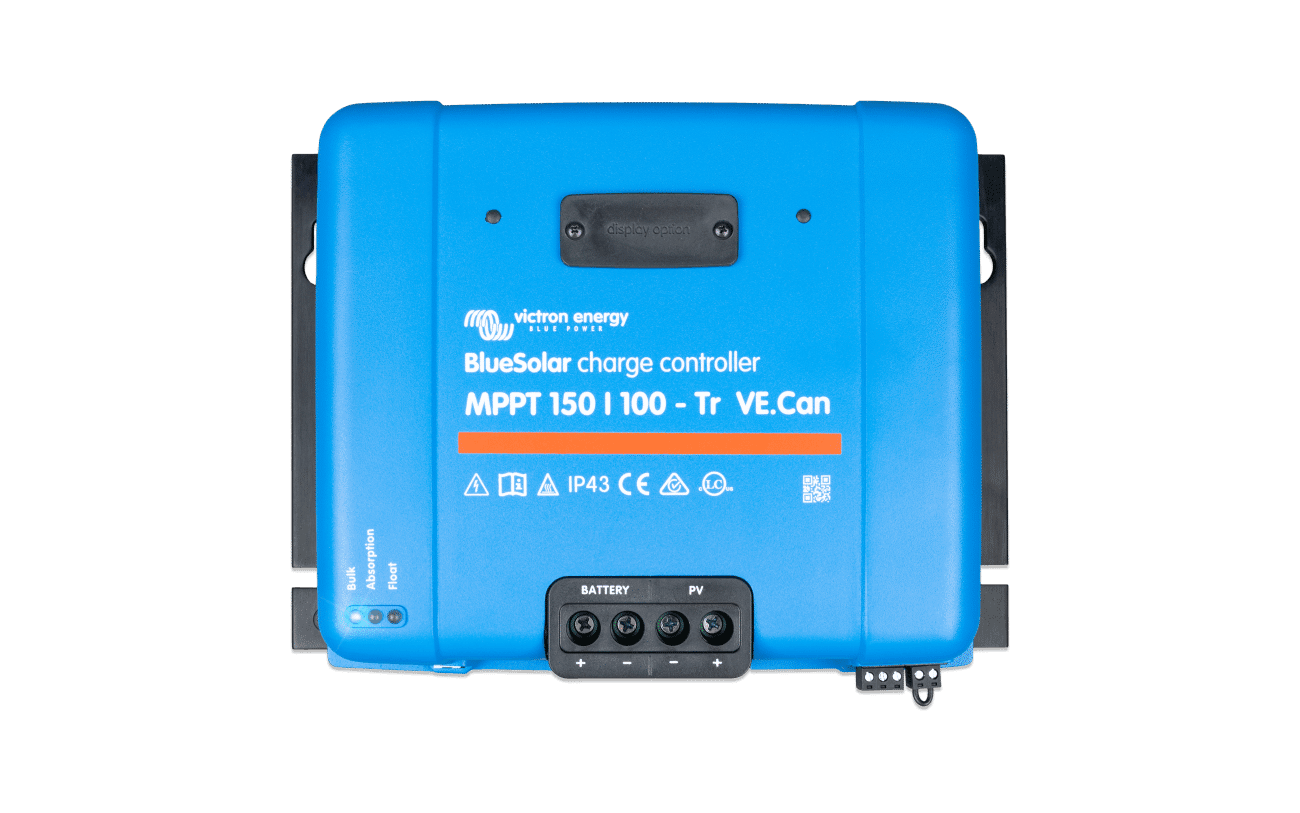

3 × SmartSolar Charge Controller

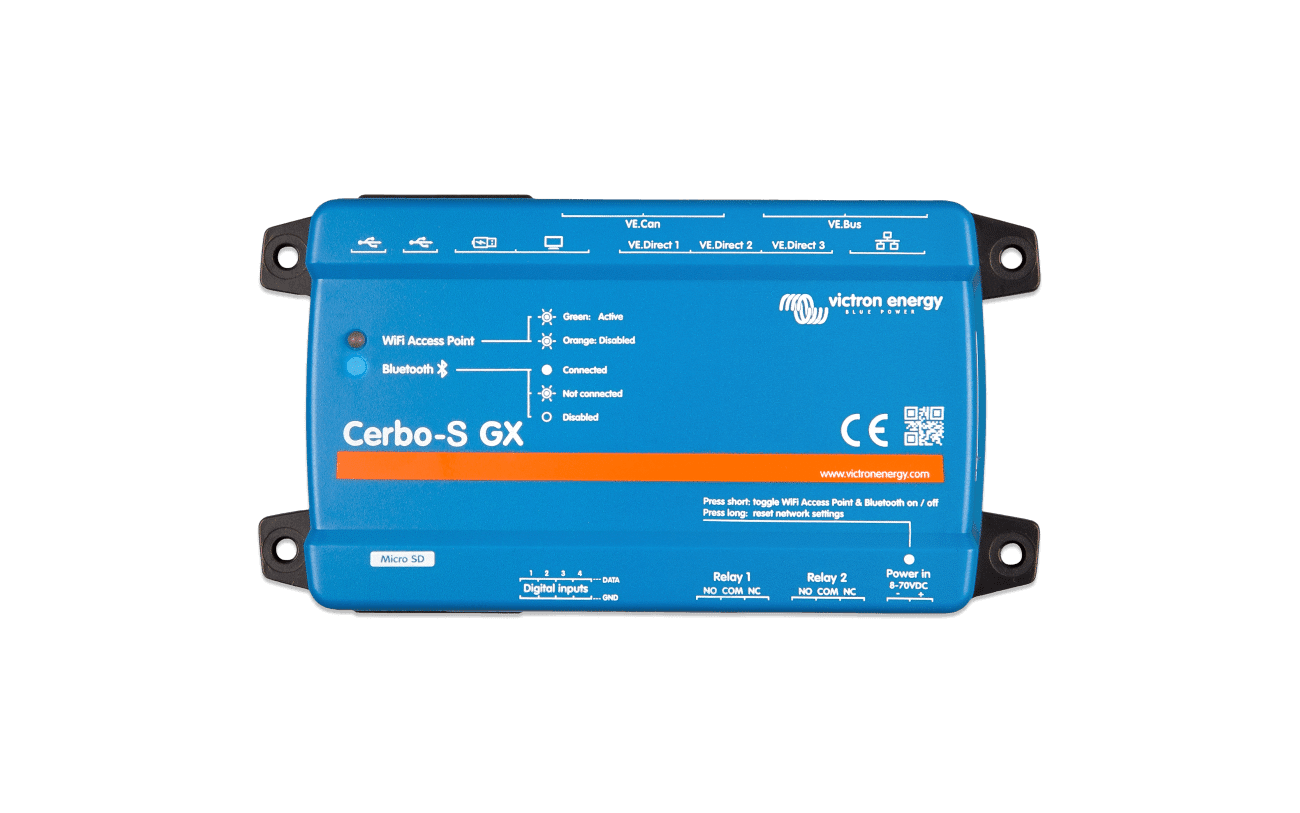

1 × Cerbo-S GX

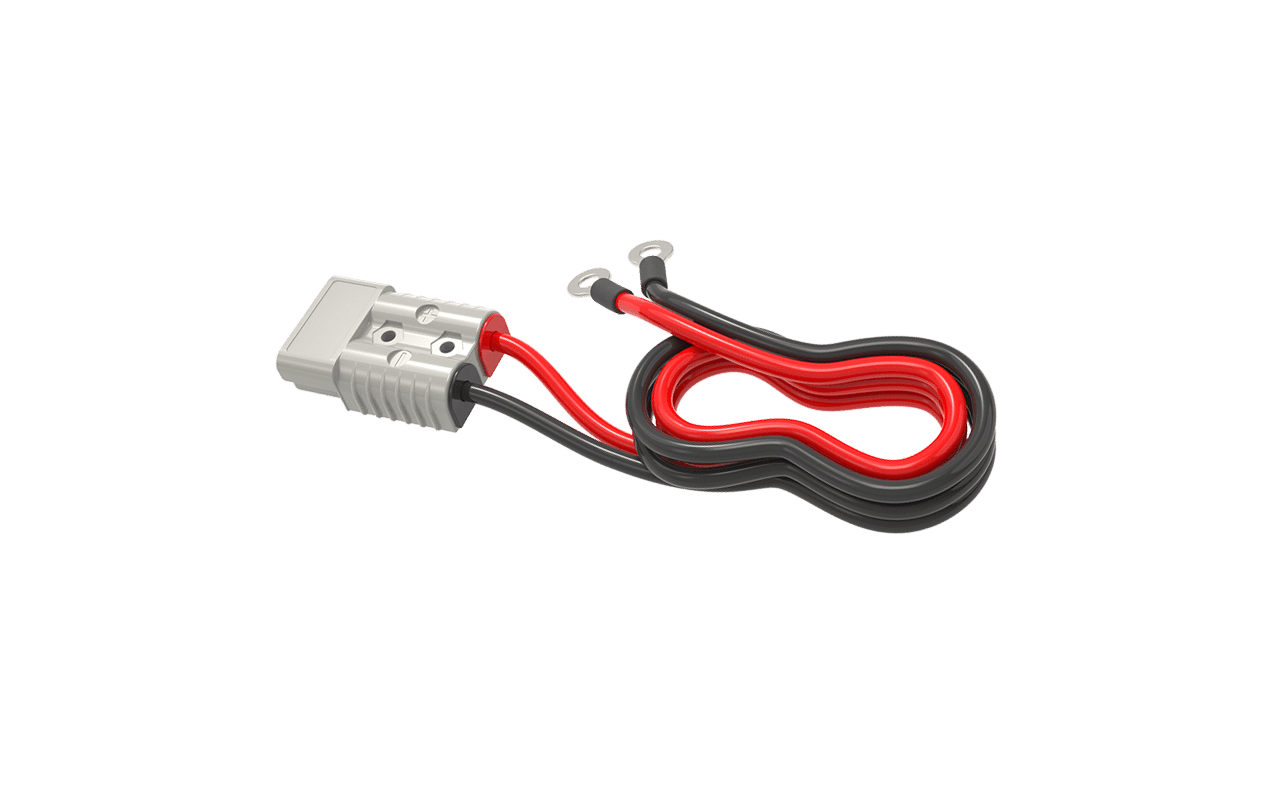

4 × 4AWG 4FT BB175 to Ring Terminal Cable

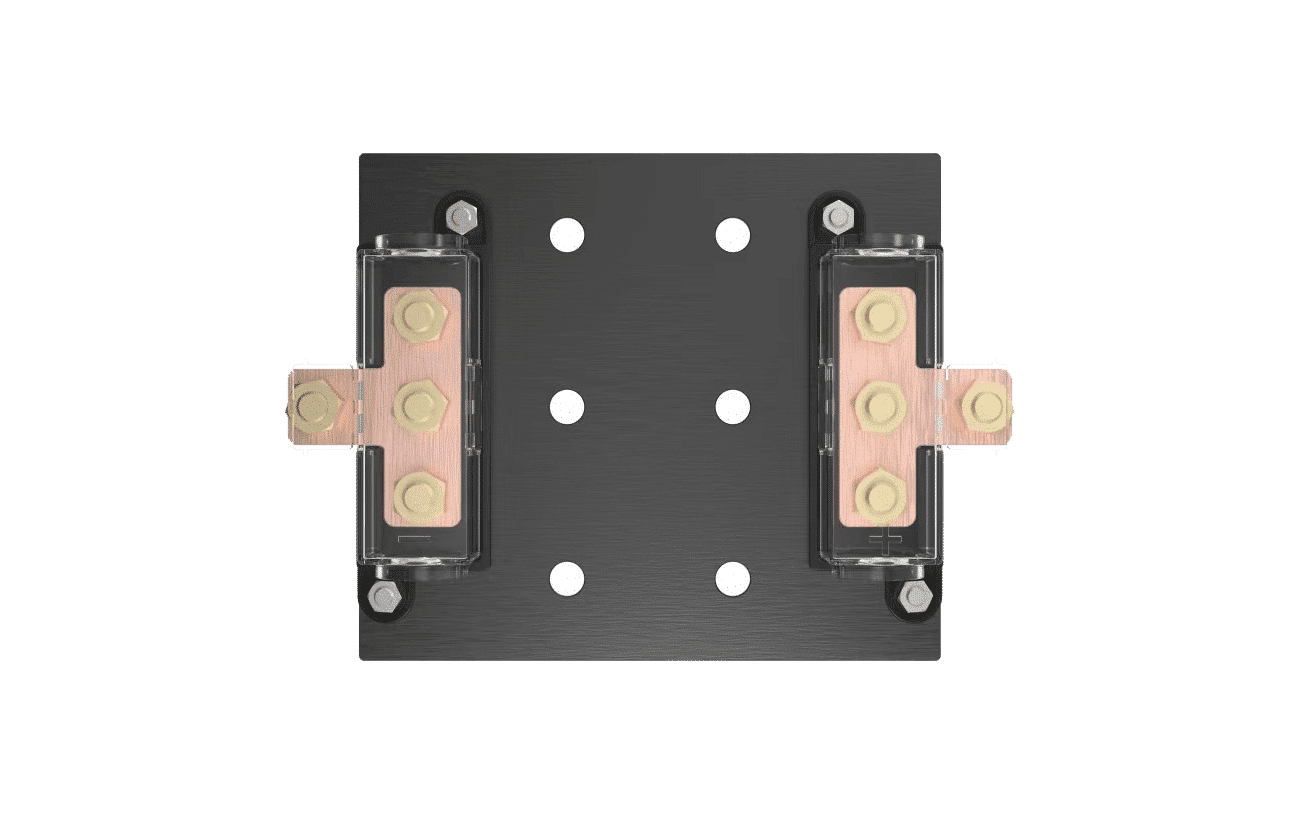

1 × Parallel Busbar

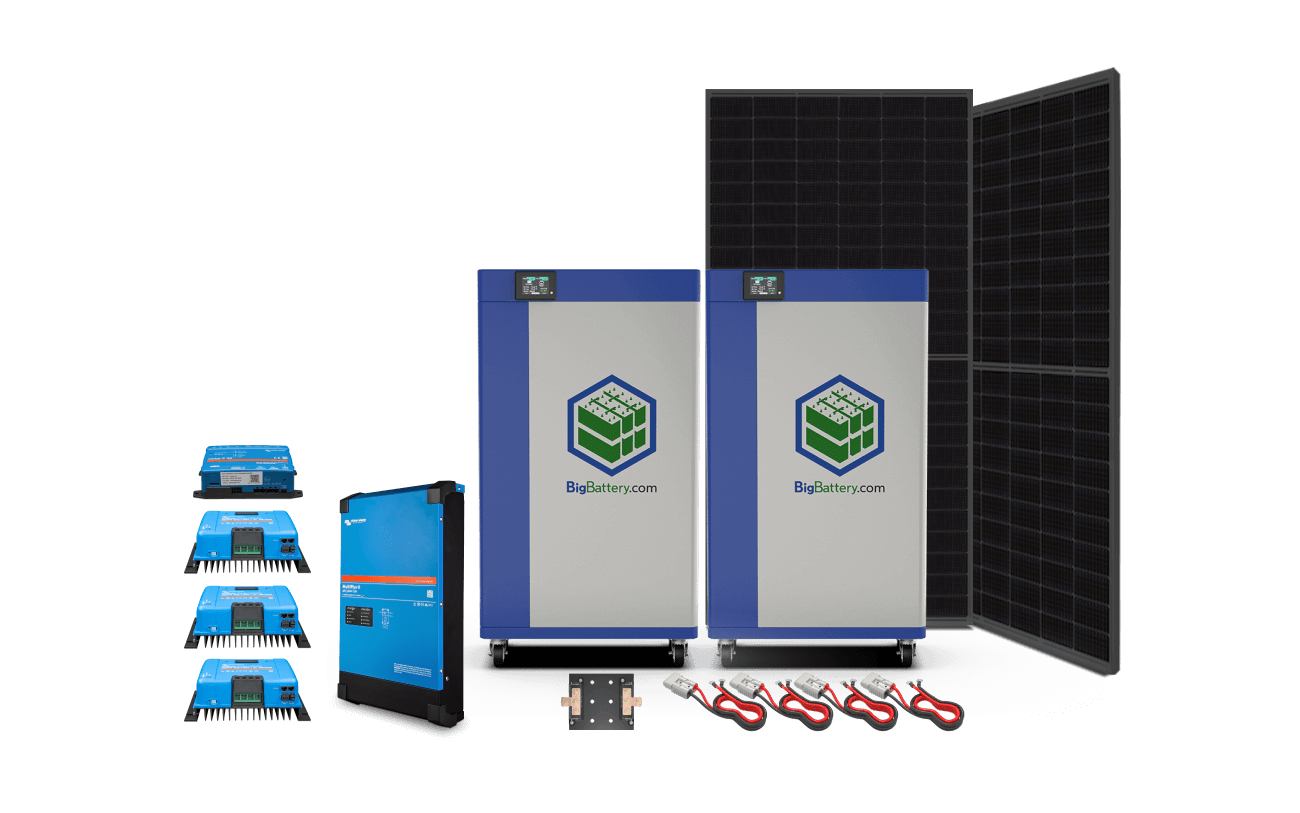

Looking to take your home or cabin off the grid? Look no further! The 2x KONG Elite Max Complete Kit comes with everything you need to get your power system up and running in no time!
Not only does this kit come with (2) LiFePO4 48V KONG Elite Max batteries, with a combined capacity of 38kWh, but also includes every component and cable you’ll need to create a massive solar power system in your home, including Victron’s new MultiPlus-II. The MultiPlus-II is a highly-efficient inverter and charger, boasting 5000VA of continuous output power, with multi-phase outputs, a built-in transfer switch, as well as Victron’s PowerControl and PowerAssist functionality for ultimate system optimization.
Single Battery Tech Specs
| SKU: | AKONG-48190-G1 |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 19kWh |
| Ah Capacity: | 372Ah |
| Charging Voltage Range: | 55.6 - 58.0V |
| Max Charge Voltage: | 58.8V |
| Operating Voltage Range: | 47.2 – 58.8V |
| Suggested Low Voltage Cutoff: | 47.2 – 50.8V |
| BMS Cutoff Range: | 42 – 47V |
| Cell Configuration: | 16S 2P |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 7500W |
| Max Discharge Peak Current: | 350A (6 Seconds) |
| Max Charge Current: | 90A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 600 lb (272.2 kg) |
| Depth: | 15 in (38.1 cm) |
| Width: | 25.5 in (64.8 cm) |
| Height: | 46.5 in (118.1 cm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
Designed For 48V Applications
- LEAD ACID REPLACEMENT
- EMERGENCY BACKUP
- WORKSITE BACKUP
- OFF-GRID POWER
- SOLAR SYSTEMS
- HOMESTEADS
- TINY HOMES
- CABINS
