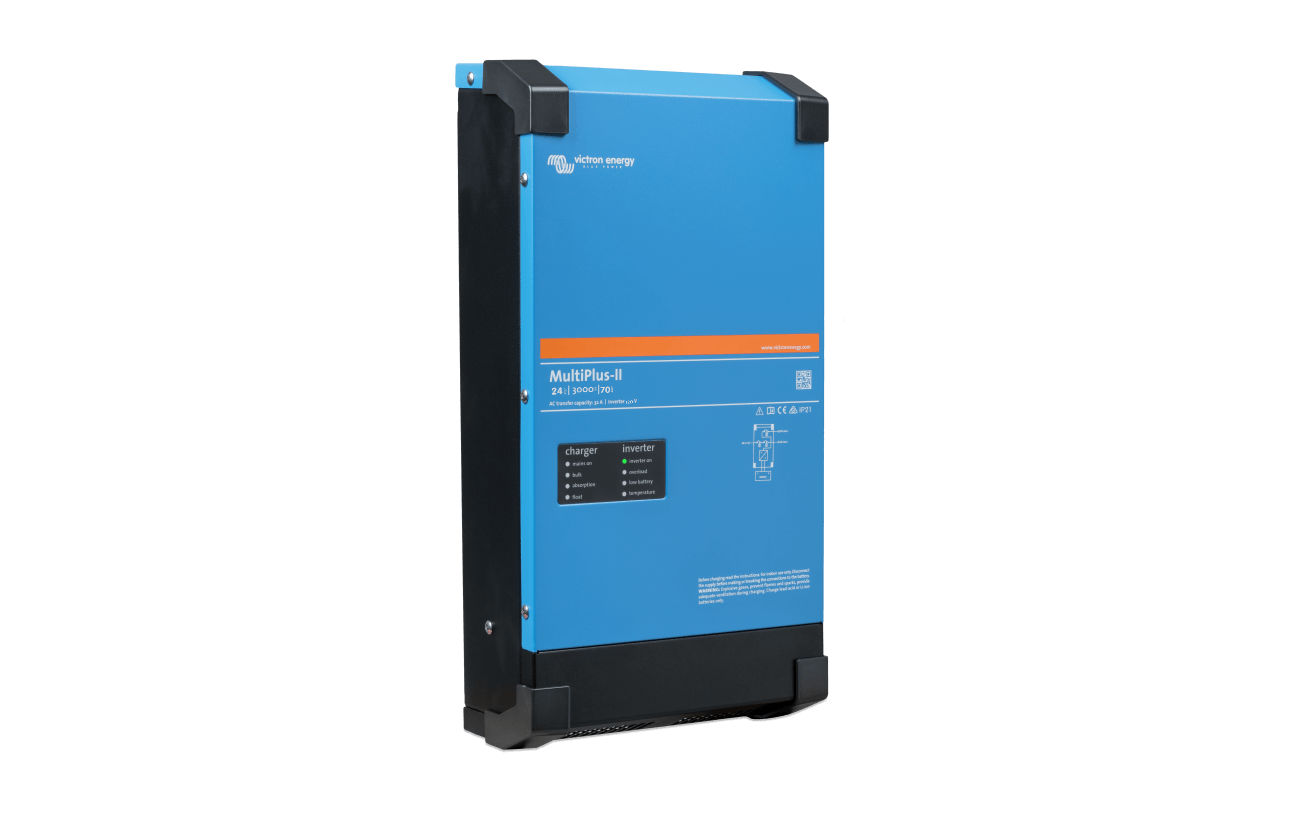

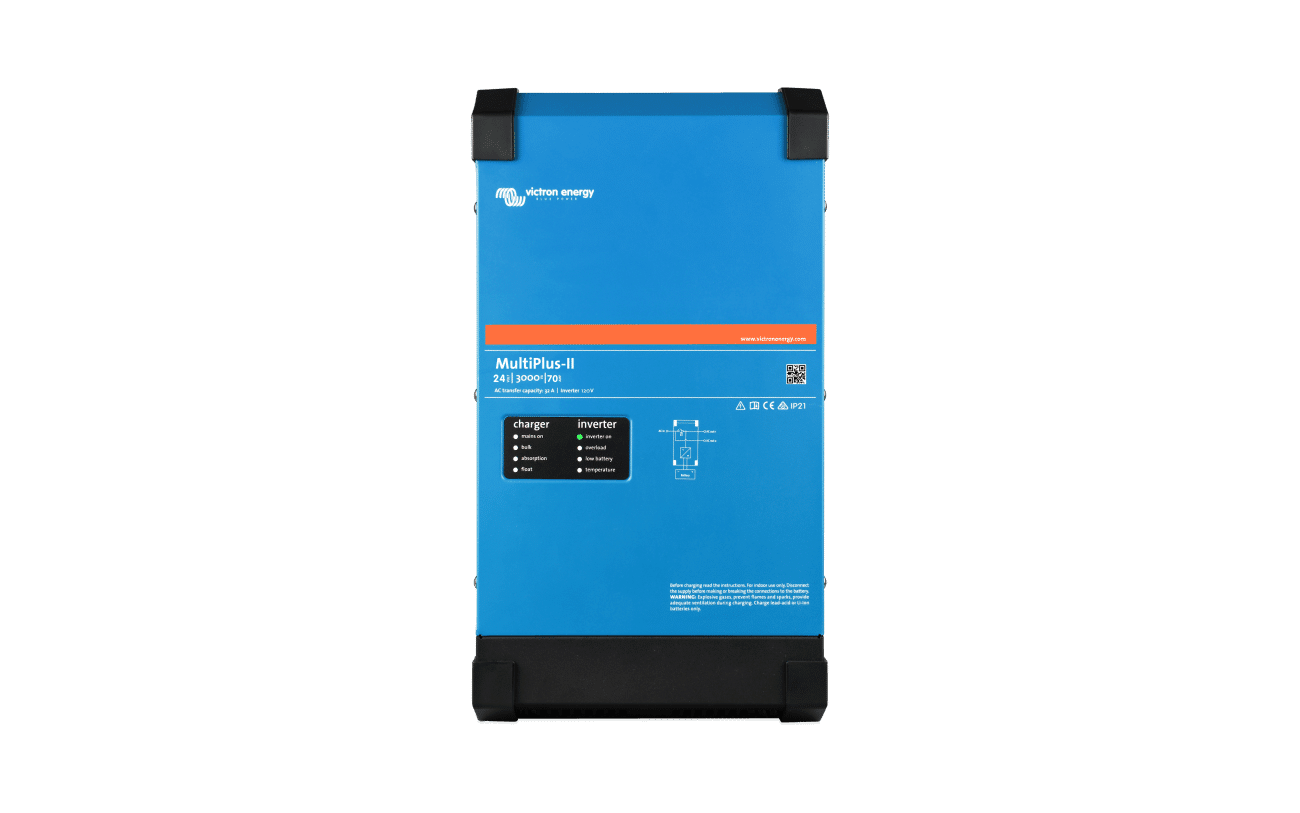

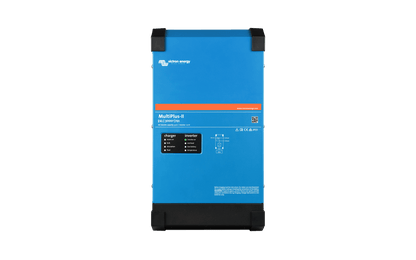

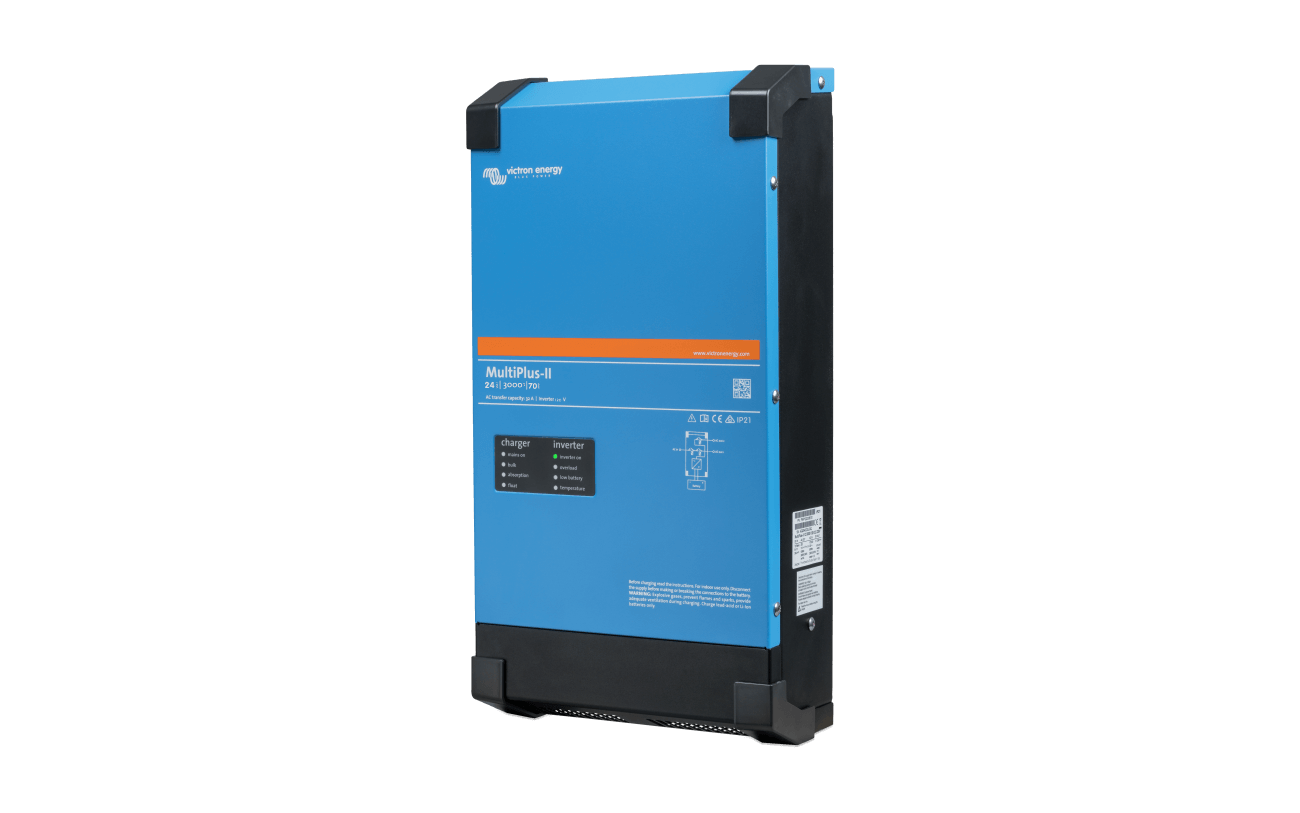

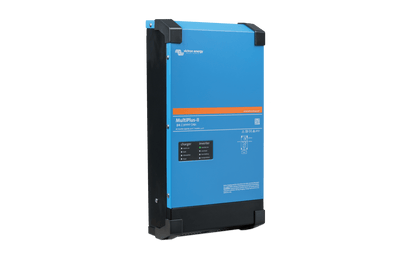

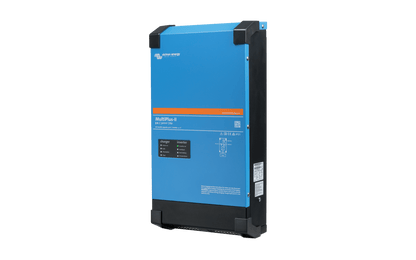

BigBattery 24V MultiPlus-II 120V Inverter/Charger INV016

BigBattery 24V MultiPlus-II 120V Inverter/Charger INV016

$1,388.00
$1,388.00
Sale Sold out
Shipping calculated at checkout.

The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 100A.



A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).



PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.



The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.



Tech Specs
SKU: INV016
Battery Voltage: 24VDC

INVERTER OUTPUT
Rated Power: 3000 VA / 2400 W
Peak Power: 5500 W
Parallel Capacity: Yes
Nominal Output Voltage RMS: N/A
Output Frequency: 60 Hz ± 0.1%
AC Voltage Regulation: 120 VAC ± 2%
Inverter Efficiency (Peak): 94%
Waveform: Pure Sine Wave
Transfer Time: N/A

AC INPUT
Voltage: 120VAC
Selectable Voltage Range: 90-140 VAC
Frequency Range (Auto-Sensing): 45 – 65 Hz
Max. Charging Current: 70A

DIMENSIONS
Weight: 42 lbs
Depth: 5.8 in
Width: 10.9 in
Height: 21.1 in





Features

  • High PV Input Voltage
  • Low-Frequency Pure Sine Waveform
  • Multifunctional Split-Phase Output
  • Integrated MPPT Charge Controller
  • Integrated Pure Copper Transformer
  • Configurable Grid or Solar Input Priority
  • WiFi Remote Monitoring
  • Overload, Short Circuit, & Deep Discharge Protections
  • CAN/RS485 Protocols for BMS Communications
  • In-Depth LCD Display
  • Charging, Status, & Fault Indicators
  • Compact & Reliable

Suitable For

  • 24V Battery Systems
  • Residential Solar Systems
  • Mid-Sized Off-Grid Systems
  • Backup Power Systems
  • Self-Consumption Applications
