BigBattery 24V HUSKY 2 – LiFePO4 – 200Ah – 5.12kWh FHSKY-24051-G2
BigBattery 24V HUSKY 2 – LiFePO4 – 200Ah – 5.12kWh FHSKY-24051-G2
Couldn't load pickup availability
SECOND GENERATION POWER STORAGE IS HERE! The 24V 5.12 kWh LiFePO4 HUSKY 2 is the latest and greatest from BigBattery, providing unmatched reliability and efficiency in your RV & Van applications.
This battery is our most energy-dense 24V solution to date, designed to power your adventures no matter how far they take you. From its Tier 1 LFP cells to its generous operating parameters and wide temperature range, this battery redefines versatility and durability when it comes to lithium power storage. But that’s not all!
The HUSKY 2 comes with state-of-the-art features to enhance the safety and visibility of your power. Not only is it housed in an IP65-rated casing, and equipped with an advanced BMS capable of auto-balancing cells, but it also boasts a self-heating function to ensure you have reliable power through every winter excursion. Plus, the HUSKY 2 features full CANBus & RS485 communication protocols, so you can always monitor the status of your power.
Equipped with the HUSKY 2, you’ll be powered and prepared to hit the road worry-free every time. Shop the all-new 24V HUSKY 2 today!
Tech Specs
| SKU: | FHSKY-24051-G2 |
| System Voltage: | 24V |
| Nominal Voltage: | 25.6V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 5.12kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: | 27.8 - 28V |
| Max Charge Voltage: | 29.2V |
| Operating Voltage Range: | 24 – 28.8V |
| Suggested Low Voltage Cutoff: | 24 – 25.4V |
| BMS Cutoff Range: | 21 – 23.5V |
| Cell Configuration: | 8S |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 5120W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 150A |
| Charge Temperature Range: | -4°F - 113°F (-20°C - 45°C) |
| Discharge Temperature Range: | -4°F - 131°F (-20°C - 55°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 95 lb (43.1 kg) |

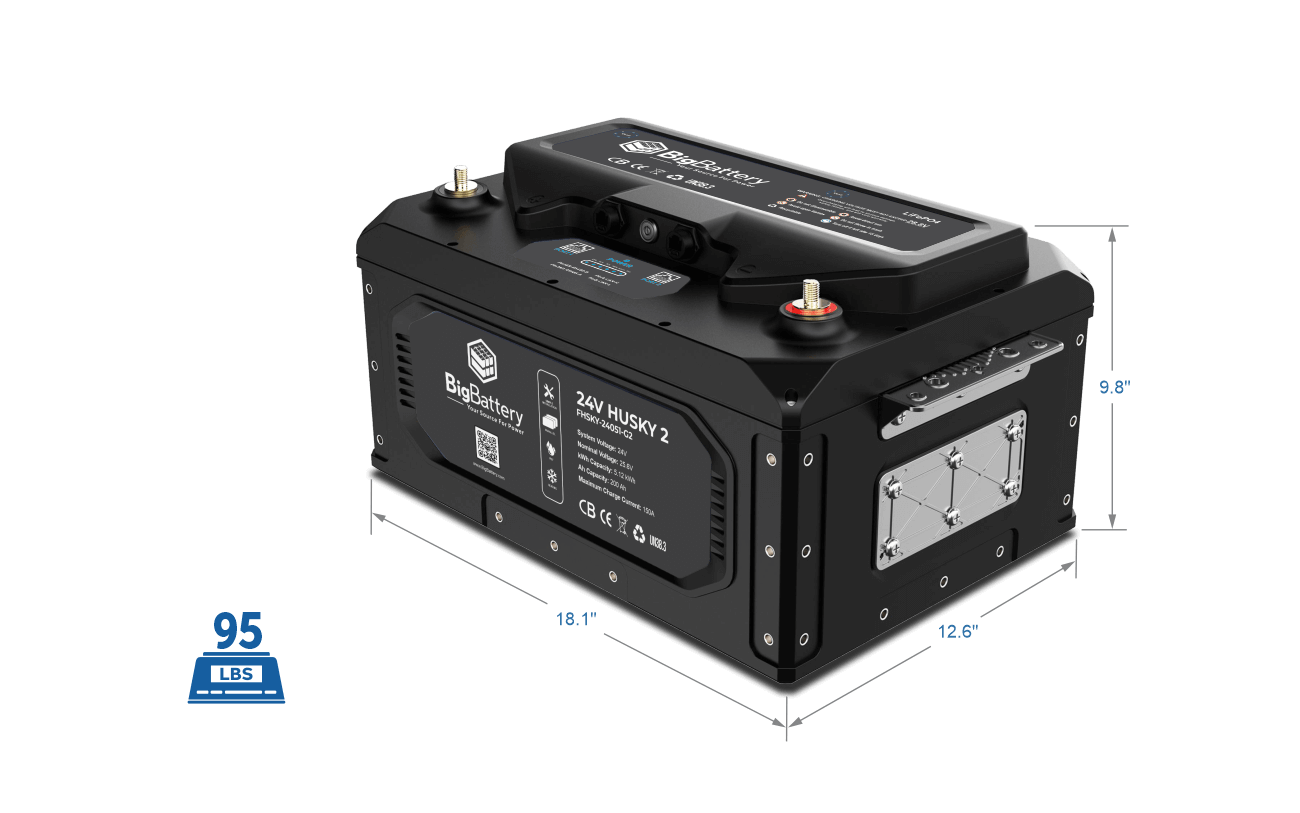

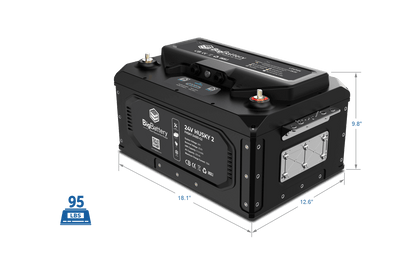

| Depth: | 12.6 in (320 mm) |
| Width: | 18.1 in (460 mm) |
| Height: | 9.8 in (249 mm) |
| Max Connections: | Up to (16) Parallel |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
| Self-Heating: | Yes |
Designed For 24V Applications
- LEAD ACID REPLACEMENT
- INTENSE HEAT & COLD
- CLASS A, B, & C RVs
- CAMPER VANS
- COMMERCIAL VEHICLES
- FOOD TRUCKS
- EMERGENCY BACKUP
- COMPACT STORAGE
